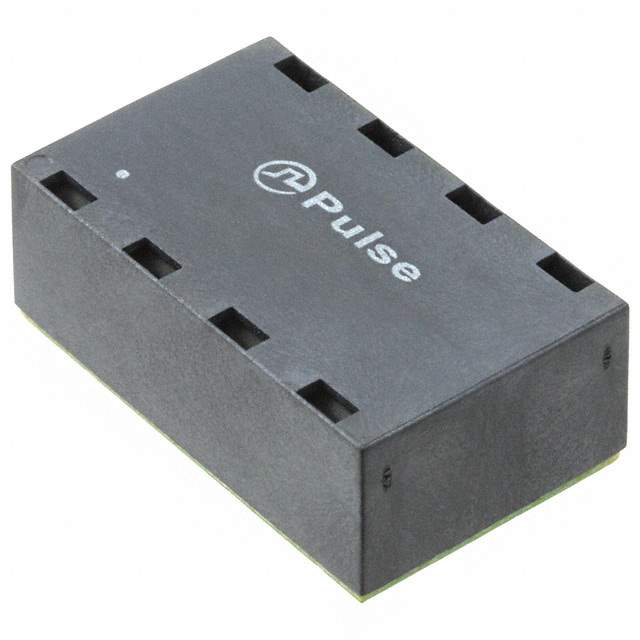

HX5400NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 350μH
Mounting SMD (SMT)
Height - Seated (Max) 0.438" (11.12mm)
Weight 0.35 oz (9.97g)
Win Source Part Number 1044399-HX5400NL
Family Name HX
Introduction Date April 27, 2007
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian HX5400NL CAD Model

Description

The Pulse Electronics Corporation 1044399-HX5400NL is an isolation and data interface transformer designed for surface mount applications.

  • Manufacturer: Pulse Electronics Corporation
  • Product Name: 1044399-HX5400NL
  • Inductance: 350μH
  • Height: 0.438" (11.12mm)
  • Application: Filters
  • Weight: 0.35 oz (9.97g)
  • Family: HX
  • REACH: Unaffected
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2025
