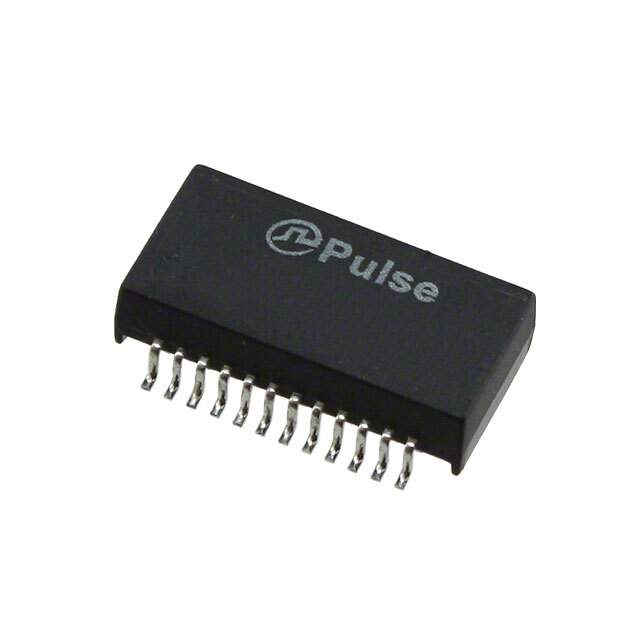

HX5084NLT Real Image
Same model may have multiple batches, images only for reference.

HX5084NLT

Part No HX5084NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1 CT:1CT TX/RX 350UH
Datasheet
HX5084NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Estimated Pruduction Lead Time 17 Weeks
Manufacturer Pulse
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 553-3796-1, HX5084NLT-ND, 553-3796-6, 553-3796-2
Quantity per package 700
Popularity High
Supply and Demand Status Balance
Win Source Part Number 920693-HX5084NLT
Ultra Librarian 3D Model Ultra Librarian HX5084NLT CAD Model

Description

The Pulse HX5084NLT is a surface mountable transformer.

  • Operating Temperature: -40°C to 85°C
  • Category: Transformers
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Package Quantity: 700 units
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 17 weeks
  • HTSUS Code: 8504.31.2000
  • Other Part Numbers: 553-3796-1, HX5084NLT-ND, 553-3796-6, 553-3796-2
