Same model may have multiple batches, images only for reference.

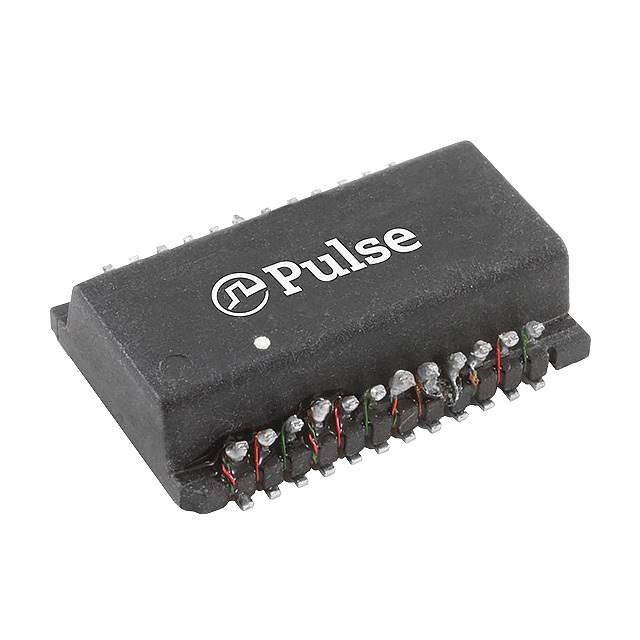

HX5084FNL Real Image
Same model may have multiple batches, images only for reference.

HX5084FNL

Part No HX5084FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1 CT:1CT TX/RX 350UH / 350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
HX5084FNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tube
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.600" L x 0.385" W (15.24mm x 9.78mm)
Height - Seated (Max) 0.163" (4.14mm)
Temperature Range - Operating -40°C ~ 85°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-2248
Standard Package 30
Win Source Part Number 994939-HX5084FNL
Ultra Librarian 3D Model Ultra Librarian HX5084FNL CAD Model

Description

The 994939-HX5084FNL is a pulse transformer from Pulse Electronics Network that is designed for use in LAN 10/100/1000 Base-T applications.

  • Manufacturer: Pulse Electronics Network
  • Product: 994939-HX5084FNL
  • Type: Pulse Transformer
  • Application: LAN 10/100/1000 Base-T
  • Inductance: 350 µH
  • Package: Tube
