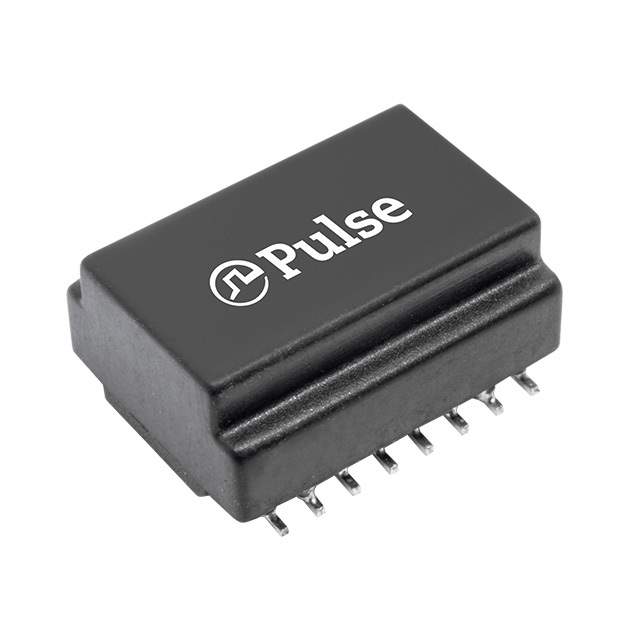

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Pulse Electronics Network
Transformer Type LAN 10/100 Base-T
Inductance 350μH
Mounting Style SMD
Dimension 0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Maximum) 0.236" (5.99mm)
Temperature Range - Operating -40°C ~ 125°C
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812122-HM1190NL
Ultra Librarian 3D Model Ultra Librarian HM1190NL CAD Model

Description

The Pulse Electronics Network HM1190NL is a LAN 10/100 Base-T transformer designed for surface-mount use.

  • Inductance: 350μH
  • Temperature Range: -40°C to 125°C
  • Dimensions: 0.500" L x 0.358" W (12.70mm x 9.09mm)
  • Seated Height: 0.236" (5.99mm)
  • Popularity: Low
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 40
  • MSL Level: 1 (unlimited)
