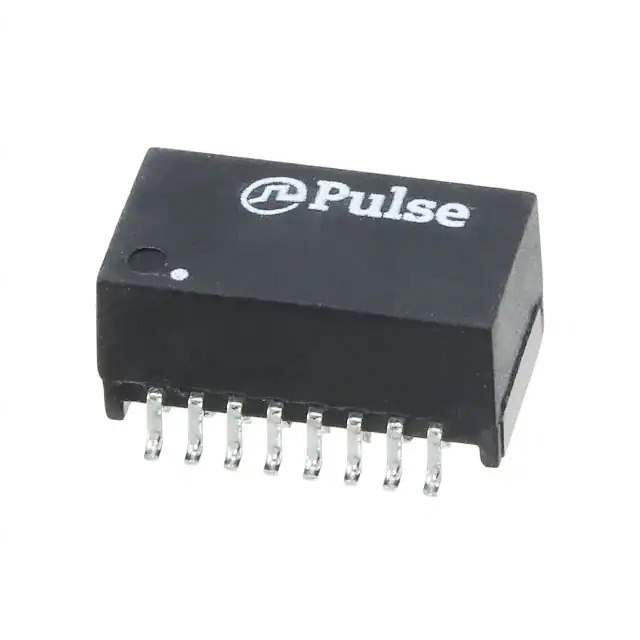

HM1188NL Real Image
Same model may have multiple batches, images only for reference.

HM1188NL

Part No HM1188NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX / 350μH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
HM1188NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max) 0.235" (5.97mm)
Temperature Range - Operating -40°C ~ 105°C
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1031085-HM1188NL
Ultra Librarian 3D Model Ultra Librarian HM1188NL CAD Model

Description

The Pulse 956577 is a pulse transformer.

  • Application: LAN 10/100 Base-T
  • Inductance: 350 µH
  • Size: 0.500" L x 0.280" W (12.70mm x 7.11mm)
  • Height: 0.235" (5.97mm)
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 105°C
  • Package: Tube
  • Standard Package: 40 pcs
