Same model may have multiple batches, images only for reference.

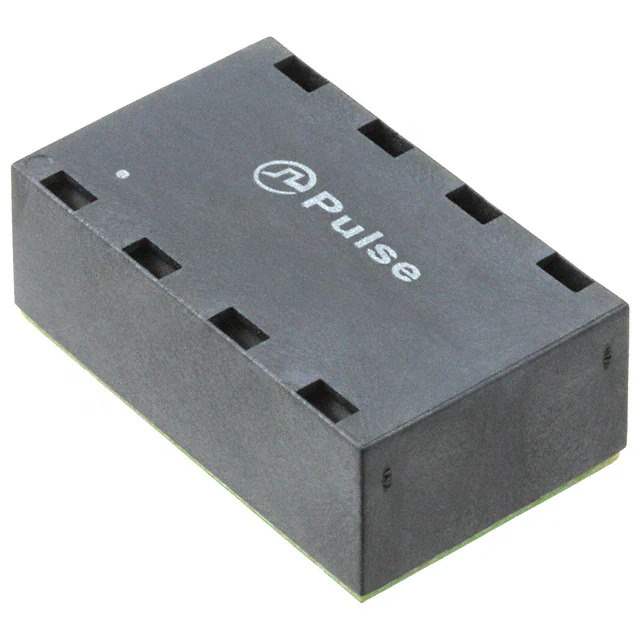

H5400NL Real Image
Same model may have multiple batches, images only for reference.

H5400NL

Part No H5400NL
Manufacturer Pulse
Catalog Pulse Transformers
Description MODULE XFORMR QUAD GIGABIT SMD / Pulse Transformer 1CT:1CT Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tray
Product Status Active
Mounting Type Surface Mount
Size / Dimension 1.120" L x 0.680" W (28.45mm x 17.27mm)
Height - Seated (Max) 0.438" (11.12mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.35 oz (9.97 g)
Standard Package 60 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 873169-H5400NL
Ultra Librarian 3D Model Ultra Librarian H5400NL CAD Model

Description

The 873169-H5400NL is a pulse transformer designed for use in transformers - pulse transformers category.

  • Mounting Type: Surface Mount
  • Package: Tray
  • Size: 1.120" L x 0.680" W (28.45mm x 17.27mm)
  • Seated Height: 0.438" (11.12mm)
  • Product Status: Active
  • Standard Package: 60 pcs
  • Weight: 0.35 oz (9.97 g)
  • Operating Temperature: 0°C to 70°C
  • ECCN: EAR99
  • REACH: Not affected
  • HTSUS Code: 8504.31.2000
  • Manufacturer: Pulse
