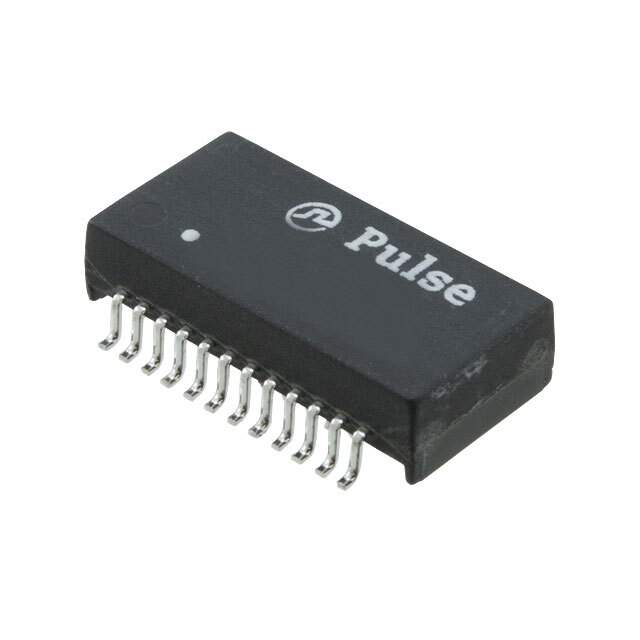

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 0.600" L x 0.300" W (15.24mm x 7.62mm)
Height - Seated (Maximum) 0.163" (4.14mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.02 oz (0.57g)
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1178296-H5084NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H5084NL CAD Model

Description

The Pulse Electronics Network transformer is an encapsulated isolation and data interface transformer that is SMD mounted. The transformer is designed to be used in electronic circuits that require a transformer for isolation and data interface.

  • Temperature range: 0°C to 70°C
  • Weight: 0.02 oz (0.57g)
  • Manufacturer: Pulse Electronics Network
  • Part number: 1178296-H5084NL
  • Packaging: tube
  • Manufacturer pack quantity: 30
  • Height seated: 0.163" (4.14mm) in height when seated (maximum)
  • Popularity: medium popularity
  • Supply and demand status: limited
