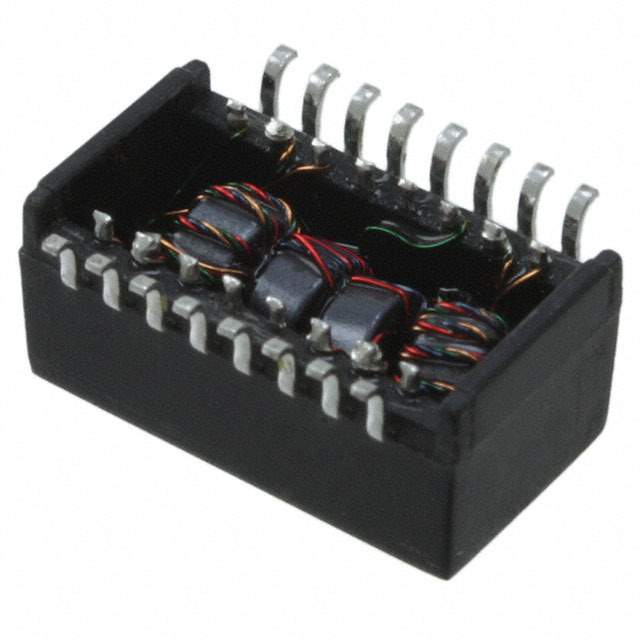

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Series Star Magnetics™
Package Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max) 0.240" (6.10mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.1 oz (2.85 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-1845-5,H2260NL-ND
Standard Package 40
Win Source Part Number 1228251-H2260NL
Ultra Librarian 3D Model Ultra Librarian H2260NL CAD Model

Description

The H2260NL is an isolation and data interface transformer from the Star Magnetics™ series.

  • Manufacturer: Pulse
  • Type: Pulse Transformer
  • Packaging: Tube
  • Height Seated: 0.240" (6.10mm)
  • Weight: 0.1 oz (2.85 g)
  • Operating Temperature: 0°C to 70°C
