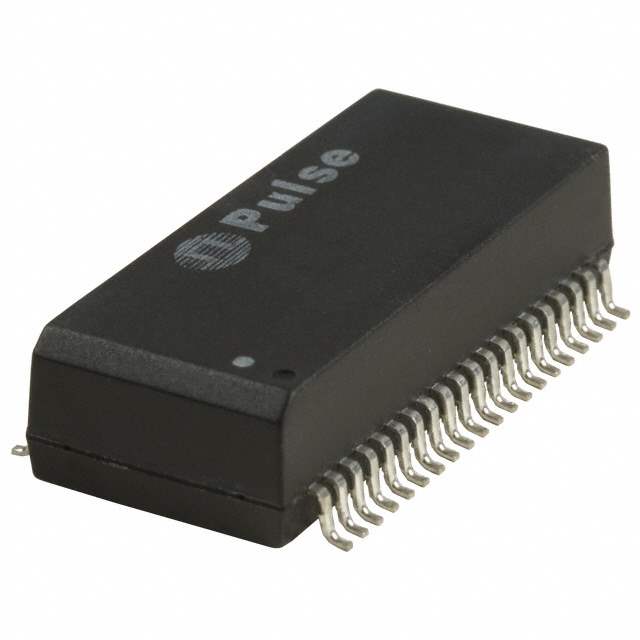

H1164NL Real Image
Same model may have multiple batches, images only for reference.

H1164NL

Part No H1164NL
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR MODUL AUTO MDI/MDIX 10/100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.230" (5.84mm)
Weight 0.17 oz (4.84g)
Win Source Part Number 089942-H1164NL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H1164NL CAD Model

Description

This is an isolation and data interface transformer designed by Pulse Electronics Corporation. The transformer is encapsulated and has a height of 0.230" (5.84mm) and a weight of 0.17 oz (4.84g). The transformer is designed for SMD (SMT) mounting and is ideal for use in various applications. This transformer is a common-used part with high popularity and limited supply and demand.
