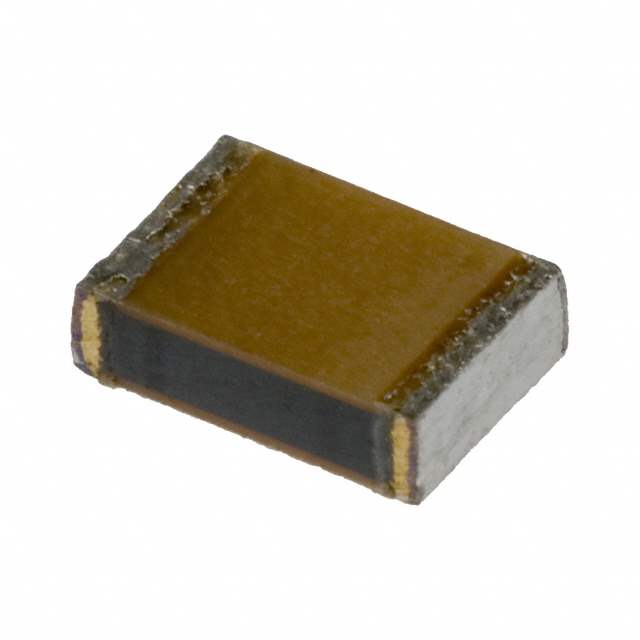

ECH-U1103JC9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 10000pF
Tolerance ±5%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 122547-ECH-U1103JC9
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1103JC9 CAD Model

Description

Description:

The ECH-U1103JC9 is a high-performance SMD film capacitor, designed for superior reliability and stability in various electronic applications. Its precision and robust construction make it suitable for demanding environments where consistent performance is required.

Features & Benefits:

  • High operating temperature range for versatile use.
  • Low dissipation factor ensuring minimal energy loss.
  • Compact design ideal for space-constrained applications.
  • Robust construction for enhanced longevity.

Applications:

  • Power supply circuits
  • Industrial electronic systems
  • Consumer electronics
  • Telecommunications equipment
