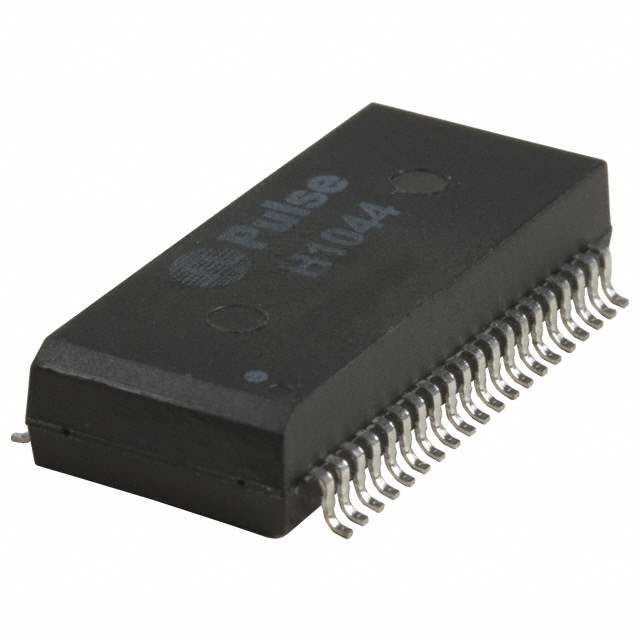

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.230" (5.84mm)
Weight 0.14 oz (3.99g)
Win Source Part Number 270131-H1044NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H1044NL CAD Model

Description

The 270131-H1044NL is an isolation and data interface transformer manufactured by Pulse Electronics Corporation. It is packaged in a tube/rail and mounted using SMD (SMT) technology. The transformer has a height of 0.230" (5.84mm) and weighs 0.14 oz (3.99g). The 270131-H1044NL is a popular choice for use in transformers and has a limited supply and demand status.
