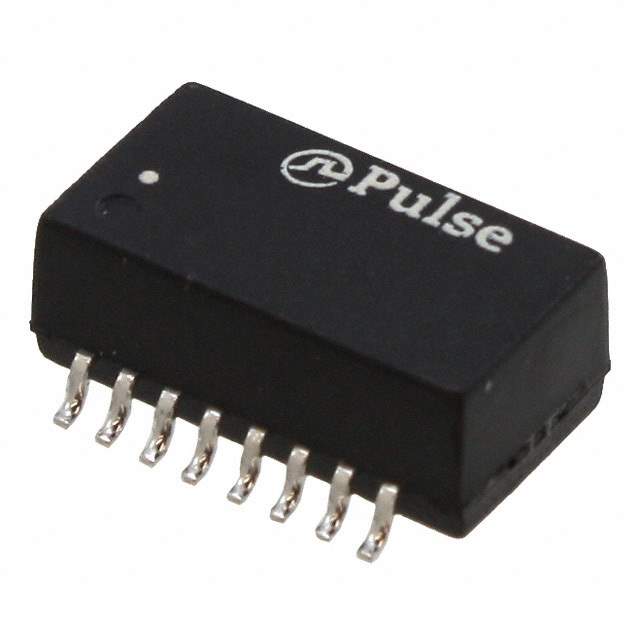

E4001NLT Real Image
Same model may have multiple batches, images only for reference.

E4001NLT

Part No E4001NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR LAN ISOL 10BASE-T 1:2 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 112μH
Mounting Style SMD
Parts Dimension 0.500" L x 0.285" W (12.70mm x 7.24mm)
Height - Seated (Maximum) 0.210" (5.33mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.03 oz (0.85 g)
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 753017-E4001NLT
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian E4001NLT CAD Model

Description

The 753017-E4001NLT transformer from Pulse Electronics Network provides isolation and data interface in a compact SMD package. It has an inductance of 112uH and can operate in a temperature range of 0°C to 70°C.

  • Supply and Demand Status: Limited
  • Applications: Power supplies, telecommunications devices, and industrial control systems
  • Inductance: 112uH
  • Temperature Range: 0°C to 70°C
  • Package: SMD
