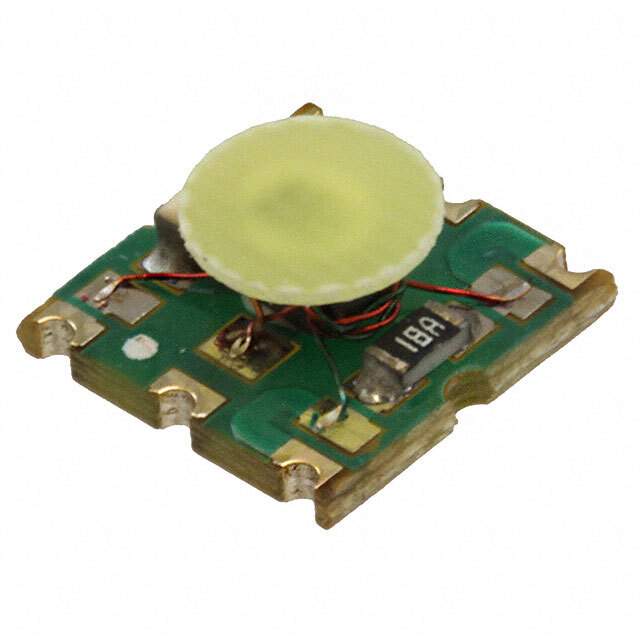

CX4012LNLT Real Image
Same model may have multiple batches, images only for reference.

CX4012LNLT

Part No CX4012LNLT
Manufacturer Pulse
Catalog RF Power Dividers/Splitters
Description RF PWR DVDR 5MHZ-1GHZ 6SMD MODUL  /  RF Power Divider 5 MHz ~ 1 GHz Isolation (Min) 17dB 6-SMD Module
Datasheet
CX4012LNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Power Dividers/Splitters
Mfr Pulse Electronics Network
Package Tape & Reel
Insertion Loss 4.2dB
Frequency 5 MHz ~ 1 GHz
Specifications Isolation (Min) 17dB
Dimension 0.259" L x 0.250" W x 0.160" H (6.58mm x 6.35mm x 4.06mm)
Package / Case 6-SMD Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 553-2288-6,-CX4012LNLT,553-2288-1,553-2288-2
Standard Package 2,200
Win Source Part Number 1152791-CX4012LNLT
Ultra Librarian 3D Model Ultra Librarian CX4012LNLT CAD Model

Description

The CX4012LNLT is a RF power divider/splitter manufactured by Pulse Electronics Network.

  • Package: 6-SMD Module
  • Package Size: 0.259" L x 0.250" W x 0.160" H (6.58mm x 6.35mm x 4.06mm)
  • Frequency Range: 5 MHz to 1 GHz
  • Insertion Loss: 4.2dB
  • Isolation (min): 17dB
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
