EP2RCW+ Mini-Circuits

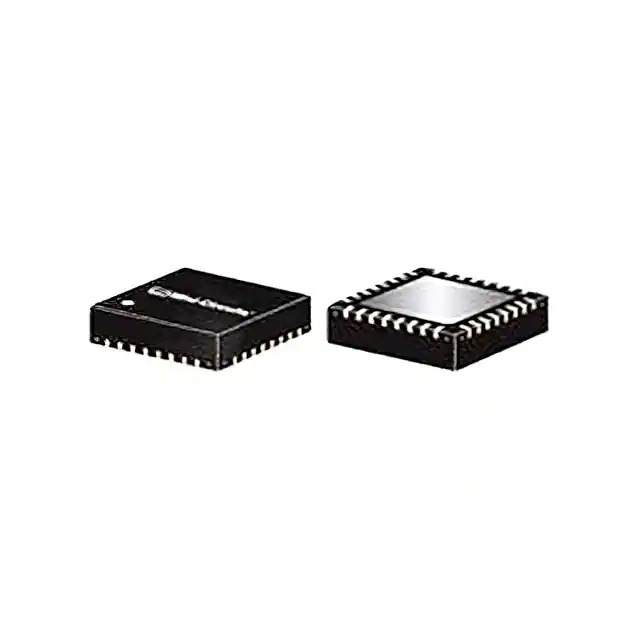

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr Mini-Circuits
Series -
Package Tape & Reel
Product Status Active
Insertion Loss 5.5dB
Frequency 0 Hz ~ 8 GHz
Specifications Isolation (Min) 17dB, 1.8 VSWR (Typ), 9° Imbalance (Max)
Size / Dimension 0.197" L x 0.197" W x 0.039" H (5.00mm x 5.00mm x 1.00mm)
Package / Case 32-VFQFN Exposed Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1373233-EP2RCW+
Ultra Librarian 3D Model Ultra Librarian EP2RCW+ CAD Model

Description

The 1373233-EP2RCW+ is an RF power divider/splitter from Mini-Circuits. It operates in the frequency range of 0 Hz to 8 GHz.

  • Frequency: 0 Hz ~ 8 GHz
  • Package / Case: 32-VFQFN Exposed Pad
  • Mounting Type: Surface Mount
  • Insertion Loss: 5.5dB
  • Isolation: 17dB (Min)
  • Size / Dimension: 0.197" L x 0.197" W x 0.039" H (5.00mm x 5.00mm x 1.00mm)
