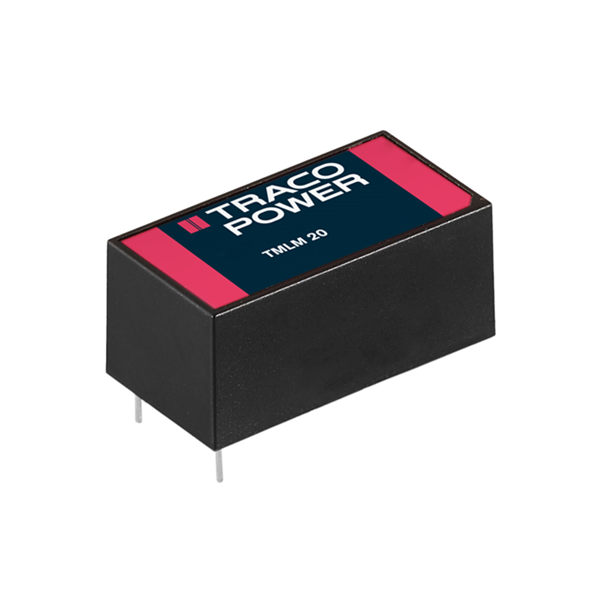

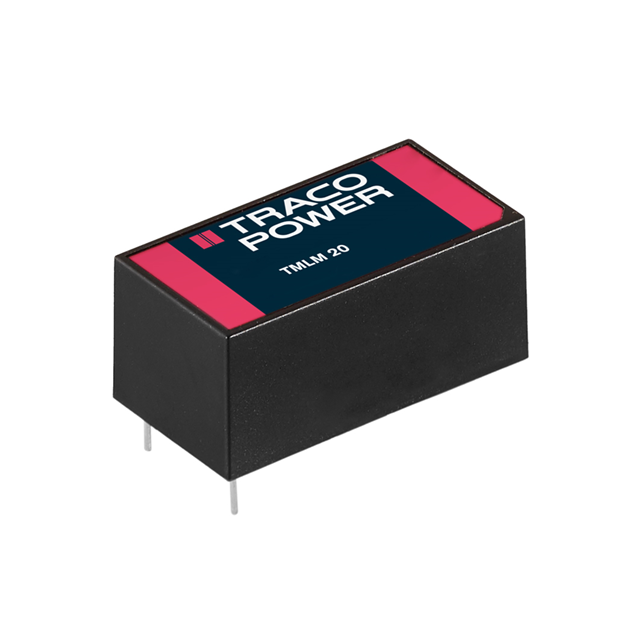

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Manufacturer Traco Power
Packaging Box
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 15V
Current - Output (Max) 1.33A
Power (Watts) 20 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -25°C ~ 60°C (With Derating)
Efficiency 83%
Mounting Through Hole
Case / Package 4-DIP Module
Size / Dimension 2.06" L x 1.07" W x 0.93" H (52.4mm x 27.2mm x 23.5mm)
Approval Agency CE, cURus
Line Regulation 0.5%
Load Regulation ±1%
Base Product Number TMLM 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1292
Standard Package 10
Win Source Part Number 1336093-TMLM 20115
Ultra Librarian 3D Model Ultra Librarian TMLM 20115 CAD Model

Description

The Traco Power 1336093-TMLM 20115 is an enclosed AC/DC converter that is designed for use in a variety of applications, including power supplies, inverters, and other electronic circuits.

  • Product Category: Board mount power supply product
  • Power Rating: 20W
  • Input Voltage Range: 90 ~ 264 VAC, 120 ~ 370 VDC
  • Efficiency: 83%
  • Size: 2.06" L x 1.07" W x 0.93" H (52.4mm x 27.2mm x 23.5mm)
