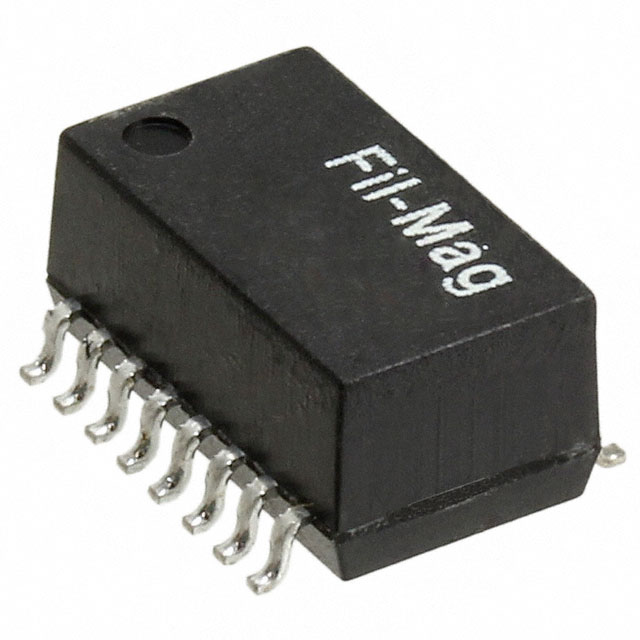

Same model may have multiple batches, images only for reference.
23Z467SM-T Pulse
Same model may have multiple batches, images only for reference.

23Z467SM-T

Part No 23Z467SM-T
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:2CT TX 1CT:1CT RX
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Transformer Type LAN 10G Base-T
Inductance 140µH
Mounting Type Surface Mount
Size / Dimension 0.450" L x 0.265" W (11.43mm x 6.73mm)
Height - Seated (Max) 0.215" (5.46mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 750 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 8102-23Z467SM-T
Ultra Librarian 3D Model Ultra Librarian 23Z467SM-T CAD Model

Description

23Z467SM-T Detailed Description

The 23Z467SM-T component is an epitome of technological innovation, crafted for use in sophisticated applications where performance and reliability are paramount.

Applications

  • Telecommunication Devices
  • Medical Equipment
  • Automotive Electronics
  • Power Management Systems

Features and Benefits

  • Exceptional durability and longevity
  • Highly efficient power handling capabilities
  • Low noise emission design
  • Flexible configuration options

Additional Details

Offering unparalleled adaptability, the 23Z467SM-T stands out as a preferred choice for professionals looking to push the boundaries of electronic development.
