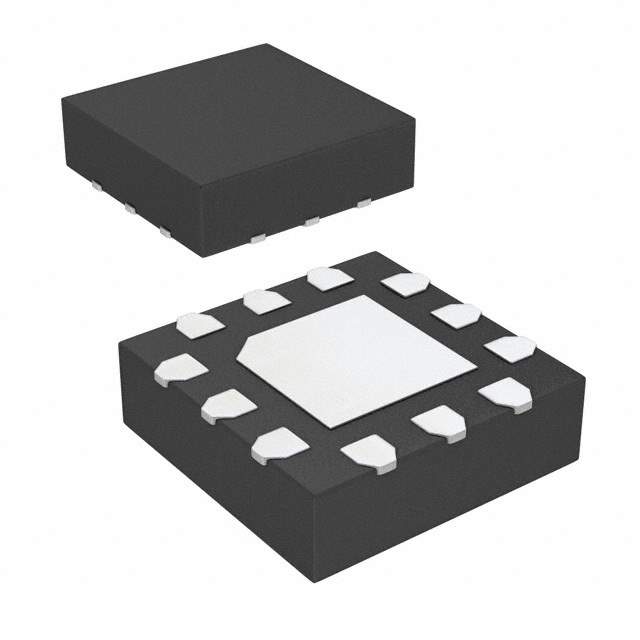

PE423422A-Z Real Image
Same model may have multiple batches, images only for reference.

PE423422A-Z

Part No PE423422A-Z
Manufacturer pSemi
Catalog RF Switches
Description IC RF SWITCH SPDT 6GHZ 12QFN  /  RF Switch IC SPDT 6 GHz 50Ohm 12-QFN (2x2)
Datasheet
PE423422A-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr pSemi
Series UltraCMOS®
Package Tape & Reel
Circuit SPDT
Frequency Range 100MHz ~ 6GHz
Isolation 42dB
Insertion Loss 0.9dB
Test Frequency 1GHz, 6GHz
P1dB 34dBm
IIP3 73dBm
Impedance 50Ohm
Voltage - Supply 2.3V ~ 5.5V
Temperature Range - Operating -40°C ~ 105°C
Package / Case 12-UFQFN Exposed Pad
Supplier Device Package 12-QFN (2x2)
Base Product Number PE423422
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1046-1134-1,1046-1134-2,1046-1134-6
Standard Package 3,000
Win Source Part Number 970131-PE423422A-Z
Ultra Librarian 3D Model Ultra Librarian PE423422A-Z CAD Model

Description

The PE423422A-Z is a high-quality RF switch that is ideal for use in a wide range of electronic devices.

  • Circuit: SPDT
  • Frequency Range: 100MHz to 6GHz
  • Insertion Loss: 0.9dB
  • Isolation: 42dB
  • Voltage Rating: 2.3V to 5.5V
  • Temperature Range: -40°C to 105°C
  • Packaging: Tape and Reel
