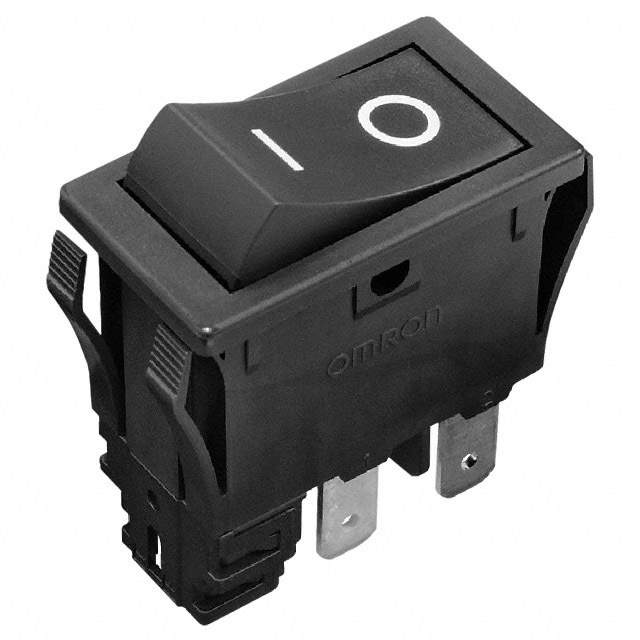

A8GS-C1385 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Omron Electronics Inc-EMC Div
Series A8GS
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O I
Termination Style Connector, Quick Connect - 0.187" (4.7mm)
Features Remote Reset Function
Panel Cutout Dimensions Rectangular - 27.70mm x 15.20mm
Temperature Range - Operating -10°C ~ 55°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number A8GS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names A8GS-C1385-ND,A8GSC1385,Z12833
Standard Package 50
Win Source Part Number 1018691-A8GS-C1385
Ultra Librarian 3D Model Ultra Librarian A8GS-C1385 CAD Model

Description

The Omron Electronics Inc-EMC Div A8GS-C1385 is a high-quality rocker switch that is designed to be used in various electronic applications.

  • Circuit: DPST
  • Voltage Rating: 125 V AC
  • Current Rating: 16A (AC)
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 30,000 cycles
  • Temperature Range: -10°C to 55°C
  • Applications: various electronic applications, including panel mount and snap-in applications
