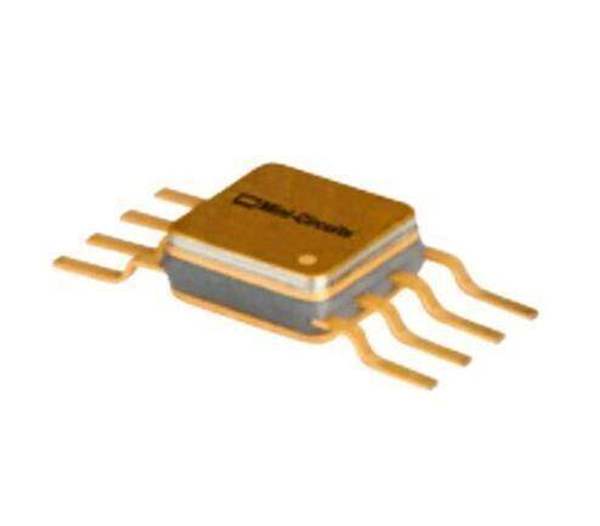

KSWA-2-46+ Mini-Circuits
Same model may have multiple batches, images only for reference.

KSWA-2-46+

Part No KSWA-2-46+
Manufacturer Mini-Circuits
Catalog RF Switches
Description RF Switch ICs Absorptive SPDT, SMT Solid State Switch, DC - 4600 MHz, 50?
Datasheet
KSWA-2-46+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Mini-Circuits
Category RF Switches
Switch Configuration SPDT
Minimum Frequency 0 Hz
Maximum Frequency 4.6 GHz
Insertion Loss 2.6 dB
Off Isolation - Typ 30 dB
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 100 C
Mounting Style SMD/SMT
Package / Case XX112
Ultra Librarian 3D Model Ultra Librarian KSWA-2-46+ CAD Model

Description

Features

  • wideband, DC to 4.6 GHz
  • low insertion loss, 1.3 dB typ
  • hermetically sealed
  • aqueous washable
