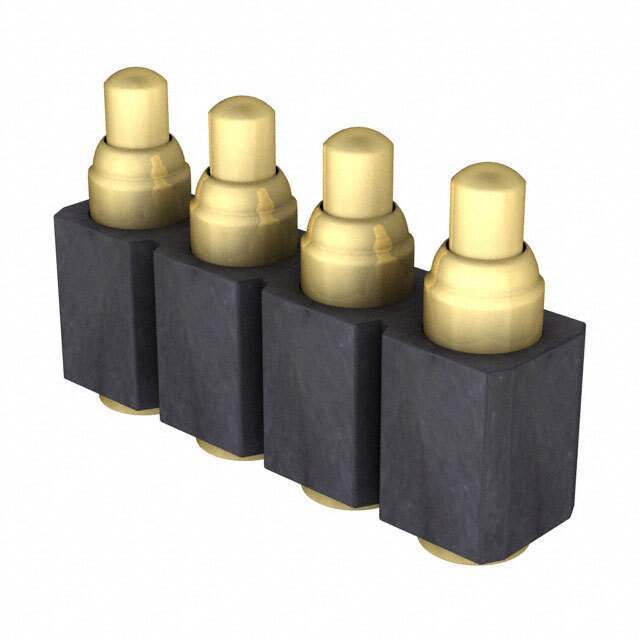

Same model may have multiple batches, images only for reference.

821-S1-004-30-015191

Name: 821-S1-004-30-015191
Brand: Preci-Dip
SKU: WS1305293
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	821-S1-004-30-015191
Manufacturer	Preci-Dip
Catalog	Rectangular Connectors
Description	CONN SPRING PISTON 4POS SMD
Datasheet	821-S1-004-30-015191 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1305293-821-S1-004-30-015191
Manufacturer	Preci-Dip
Category	Connectors, Interconnects-Rectangular Connectors-Spring Loaded
Packaging	Tape & Reel (TR)
Part Status	Active
Connector Type	Piston
Number of Contacts	4
Pitch (mm)	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Surface Mount
Material	Brass Alloy
Ultra Librarian 3D Model	Ultra Librarian 821-S1-004-30-015191 CAD Model

Alternative Products

Description

The values listed below are general specs applying for PRECI-DIP spring-loaded connectors. Please see individual catalog page for additional and product specific technical data.
Operating temperature range -55 ... +125 °C (-55 °… +85 °C with music wire spring)
Climatic category (IEC) 55/85/21
Operating humidity range Annual mean 75%
Max. working voltage 100 Vrms/150 Vdc (2.54 mm grid)
