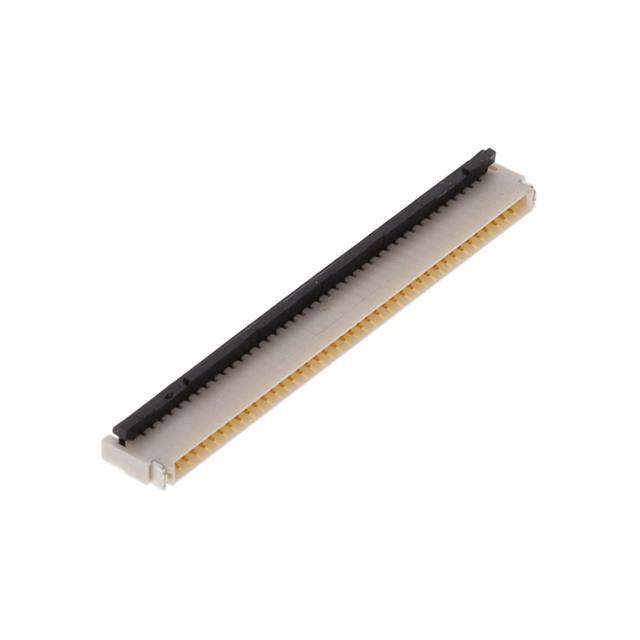

CF4240FH0R0-05-NH Real Image
Same model may have multiple batches, images only for reference.

CF4240FH0R0-05-NH

Part No CF4240FH0R0-05-NH
Manufacturer Cvilux USA
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC 40POS 0.5MM R/A / 40 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Cvilux USA
Series CF42
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.038" (0.97mm)
Locking Feature Flip Lock, Backlock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Thermoplastic, Halogen Free
Actuator Material Thermoplastic, Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 0.79µin (0.02µm)
Housing Color Natural
Actuator Color Black
Standard Package 3,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350150-CF4240FH0R0-05-NH
Ultra Librarian 3D Model Ultra Librarian CF4240FH0R0-05-NH CAD Model

Description

The Cvilux USA CF4240FH0R0-05-NH is a 40-position FFC/FPC connector assembly with a pitch of 0.020” and a zero insertion force (ZIF) feature.

  • Positions: 40
  • Pitch: 0.020”
  • Feature: Zero Insertion Force (ZIF)
  • Cable End Type: Straight
  • Mounting: Surface-Mount, Right-Angle
  • Height Above Board: 0.038”
  • Current Rating: 0.5A
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 0.79 µin
  • Housing and Actuator Material: Halogen-Free Thermoplastic
  • Flammability Rating: UL94 V-0
  • Locking Feature: Backlock and Flip Lock
  • Operating Temperature Range: -55°C to 85°C
  • REACH: Unaffected
