Same model may have multiple batches, images only for reference.

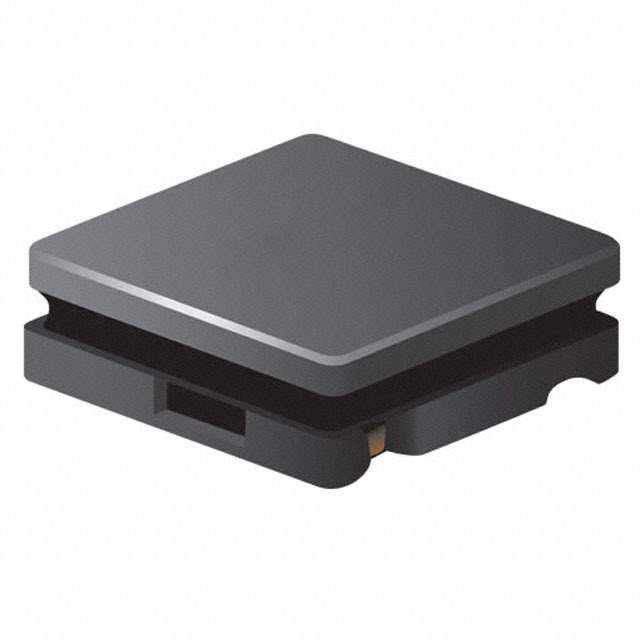

SRN3010-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRN3010-4R7M

Part No SRN3010-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN3010
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.7 A
Current - Saturation (Isat) 850mA
Shielding Semi-Shielded
DC Resistance (DCR) 210mOhm Max
Q @ Freq 7 @ 7.96MHz
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number SRN3010
Other Names SRN3010-4R7MDKR,SRN30104R7M,SRN3010-4R7MTR,SRN3010-4R7MCT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274393-SRN3010-4R7M
Ultra Librarian 3D Model Ultra Librarian SRN3010-4R7M CAD Model

Description

The Bourns Inc. SRN3010-4R7M is a fixed inductor with a drum core, wirewound type and a semi-shielded design.

  • Inductance: 4.7µH
  • Tolerance: ±20%
  • DC Resistance: 210mOhm Max
  • Current Rating: 1.7A
  • Height: 0.039" (1.00mm) when seated
  • Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Temperature Range: -40°C to 125°C
  • Mounting: SMD (SMT) package using tape and reel
