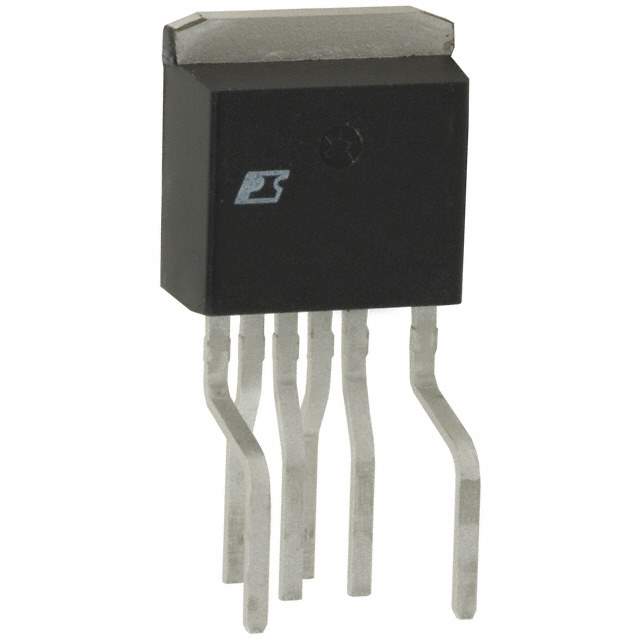

TOP242F Real Image
Same model may have multiple batches, images only for reference.

TOP242F

Part No TOP242F
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC OFFLINE SW FLYBACK TO262-7C / Converter Offline Flyback Topology 66kHz ~ 132kHz TO-262-7C
Datasheet
TOP242F Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Power Management (PMIC)>AC DC Converters, Offline Switches
Manufacturer Power Integrations
Packaging Bulk
Product Status Obsolete
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 700V
Topology Flyback
Duty Cycle 66.5%
Frequency - Switching 66kHz ~ 132kHz
Power (Watts) 22 W
Fault Protection Current Limiting, Over Temperature, Over Voltage
Control Features Frequency Control
Temperature Range - Operating -40°C ~ 150°C (TJ)
Case / Package TO-262-7 (Formed Leads), 6 Leads
Supplier Device Package TO-262-7C
Mounting Through Hole
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 50
Win Source Part Number 1317241-TOP242F
Ultra Librarian 3D Model Ultra Librarian TOP242F CAD Model

Description

The Power Integrations TOP242F is an offline switch that is perfect for AC DC converters.

  • Packaging: Bulk
  • Standard Package: 50
  • Mounting: Through-Hole
  • Power: 22W
  • Output: Isolated
  • Switch: Internal
  • Voltage Breakdown: 700V
  • Topology: Flyback
  • Duty Cycle: 66.5%
  • Frequency Switching: 66kHz ~ 132kHz
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage
  • Control Features: Frequency Control
  • Supplier Device Package: TO-262-7C
  • Temperature Range: -40°C ~ 150°C (TJ)
  • Status: Obsolete
  • ROHS: Non-Compliant
  • ECCN: EAR99
  • HTSUS: 8542.39.0001
