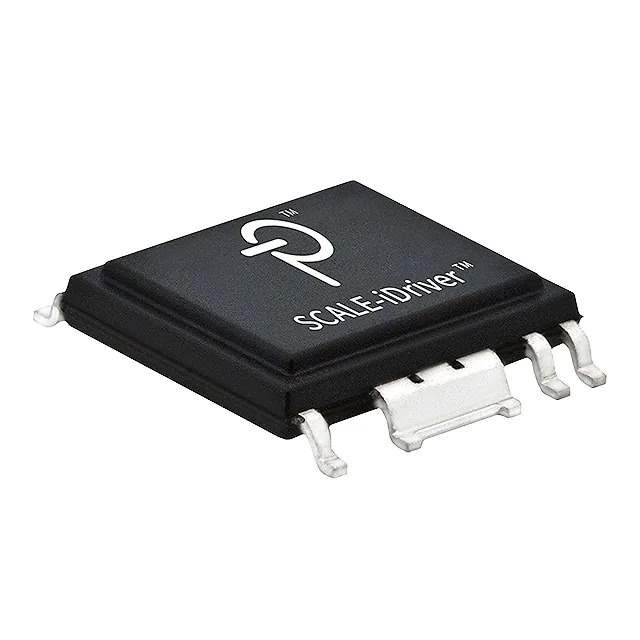

SID1183K Real Image
Same model may have multiple batches, images only for reference.

SID1183K

Part No SID1183K
Manufacturer Power Integrations
Catalog PMIC - Gate Drivers
Description IC GATE DRV HI/LO SIDE ESOP-R16B / High-Side or Low-Side Gate Driver IC Inverting eSOP-R16B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Power Integrations
Series SCALE™-1
Package Tube
Product Status Obsolete
Programmable Not Verified
Driven Configuration High-Side or Low-Side
Channel Type Single
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Voltage - Supply 4.75V ~ 5.25V
Logic Voltage - VIL, VIH 0.5V, 3.3V
Current - Peak Output (Source, Sink) 8A, 48A
Input Type Inverting
Rise / Fall Time (Typ) 465ns, 460ns
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
Supplier Device Package eSOP-R16B
Base Product Number SID1183
Standard Package 48 pcs
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 933781-SID1183K
Ultra Librarian 3D Model Ultra Librarian SID1183K CAD Model

Description

The 933781-SID1183K is an integrated circuit designed for power management applications, specifically gate drivers.

  • Manufacturer: Power Integrations
  • Series: SCALE™-1
  • Package Format: Tube
  • Package Quantity: 48 pieces
  • Channel Operation: Single Channel
  • Input Type: Inverting
  • Operation: High-Side or Low-Side Driven
  • Compatible Gate Types: IGBT and N-Channel MOSFET
  • Logic Voltage Range: 0.5V to 3.3V
  • Peak Output Currents: 8A (Source), 48A (Sink)
  • Operating Temperature Range: -40°C to 125°C
