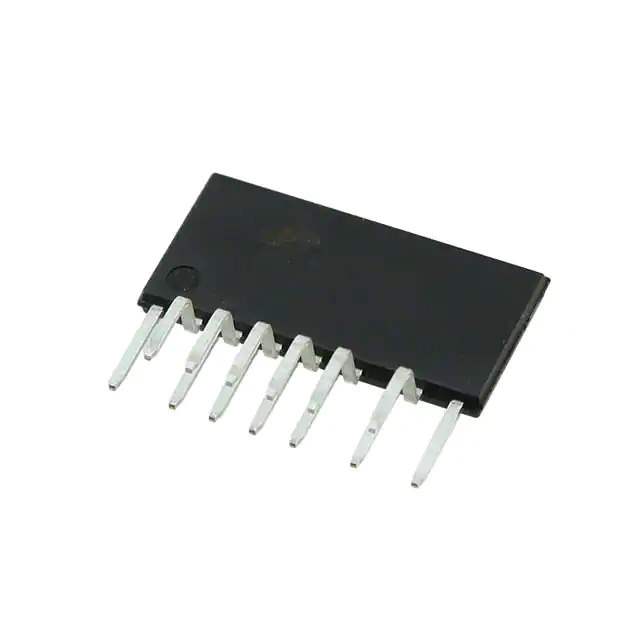

LCS702HG Real Image
Same model may have multiple batches, images only for reference.

LCS702HG

Part No LCS702HG
Manufacturer Power Integrations
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRIVER ESIP16J
Datasheet
LCS702HG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Full Half-Bridge Drivers
Mfr Power Integrations
Series HiperLCS™
Package Tube
Product Status Active
Output Configuration Half Bridge
Applications General Purpose
Interface On/Off
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 740mOhm
Current - Peak Output 10.3A
Voltage - Supply 11.4V ~ 15V
Voltage - Load 11.4V ~ 15V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Features Auto Restart, Slew Rate Controlled
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Type Through Hole
Package / Case 16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Supplier Device Package eSIP-16J
Base Product Number LCS702
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 613047-LCS702HG
Ultra Librarian 3D Model Ultra Librarian LCS702HG CAD Model

Description

The 613047-LCS702HG is a full half-bridge driver IC designed for power management applications.

  • Series: HiperLCS™
  • Features: Auto Restart, Slew Rate Controlled
  • Technology: Power MOSFET
  • Interface: On/Off
  • Fault Protections: Current Limiting, Over Temperature, Over Voltage, Short Circuit, Undervoltage Lockout (UVLO)
  • Output Configuration: Half-Bridge
  • Load Voltage: 11.4V to 15V
  • Package: 16-SSIP
  • Leads: 13
  • Feature: Exposed Pad
