Same model may have multiple batches, images only for reference.

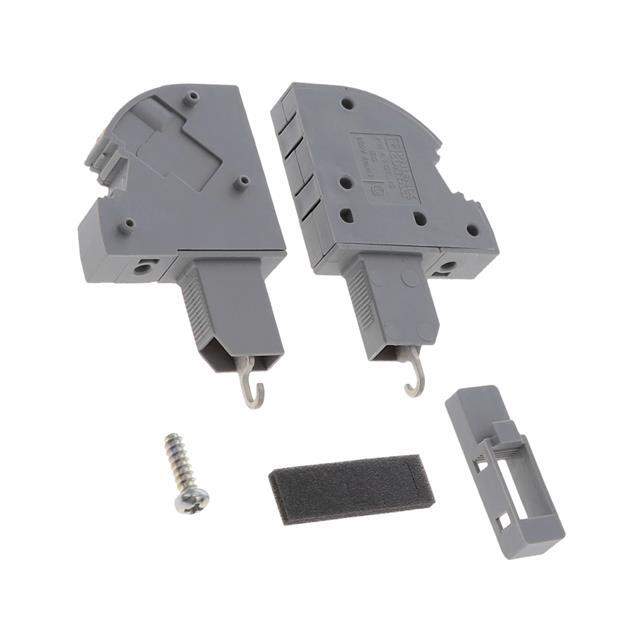

3059744 Real Image
Same model may have multiple batches, images only for reference.

3059744

Part No 3059744
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK PUSH IN CLMP 1POS GRAY / 1 Position Terminal Block Push In Clamp - Wire Entry Angled to Panel Gray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Panel Mount
Mfr Phoenix Contact
Series CLIPLINE PW
Package Bulk
Front Panel Wire Connection Push In Clamp - Wire Entry Angled to Panel
Rear Panel Wire Connection Solder Tabs
Width 0.319" (8.10mm)
Panel Thickness 0.039 ~ 0.157" (1.0 ~ 4.0mm)
Positions Per Level 1
Panel Mount Type Screw Mount - Front Flange
Voltage - UL 300 V
Current - UL 30 A
Wire Gauge 10-24 AWG
Color Gray
Features Engagement Pin
Number of Levels 1
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1341334-3059744
Ultra Librarian 3D Model Ultra Librarian 3059744 CAD Model

Description

Phoenix Contact's CLIPLINE PW series panel mount terminal block is a great choice for your electronic component needs.

  • Positions per Level: one
  • Current: 30 A
  • Voltage: 300 V
  • Color: gray
  • Panel Thickness: 0.039 ~ 0.157 inches
  • Width: 0.319 inches
  • Package: bulk
  • Standard Package: 50
  • Front Panel Wire Connection: push in clamp - wire entry angled to panel
  • Rear Panel Wire Connection: solder tabs
  • Panel Mount Type: screw mount - front flange
