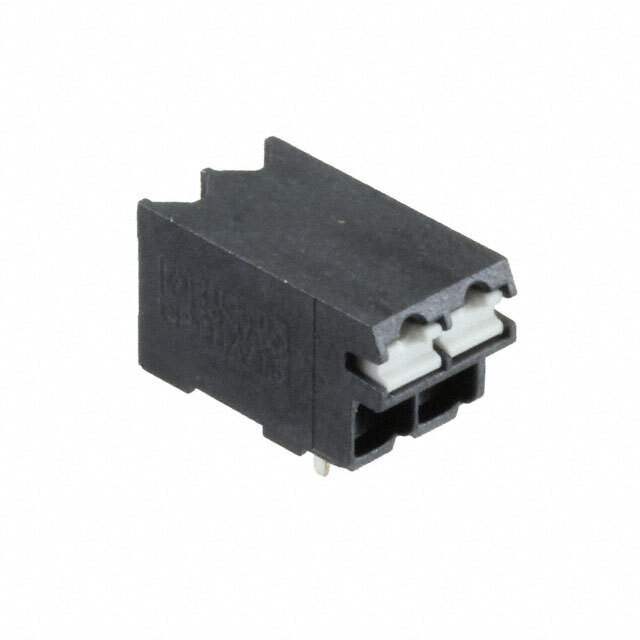

1824527 Phoenix Contact
Same model may have multiple batches, images only for reference.

1824527

Part No 1824527
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 2POS SIDE ENT 3.5MM SMD
Datasheet
1824527 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310175-1824527
Category Connectors, Interconnects >Terminal Blocks >Wire to Board
Manufacturer Phoenix Contact
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Number of Levels 1
Positions Per Level 2
Pitch 0.138" (3.50mm)
Mating Orientation Horizontal with Board
Voltage 300 V
Wire Gauge 16-24 AWG
Ultra Librarian 3D Model Ultra Librarian 1824527 CAD Model

Description

  •  Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Intuitive use through colour coded actuation lever
  • Designed for integration into the SMT soldering process
  • Quick and convenient testing using integrated test option
  • Operation and conductor connection from one direction enable integration into front of device
  • Anti-rotation pins reduce the mechanical strain on the soldering spots
