1767384

Name: 1767384
Brand: Phoenix Contact
SKU: 1380567
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1767384
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets

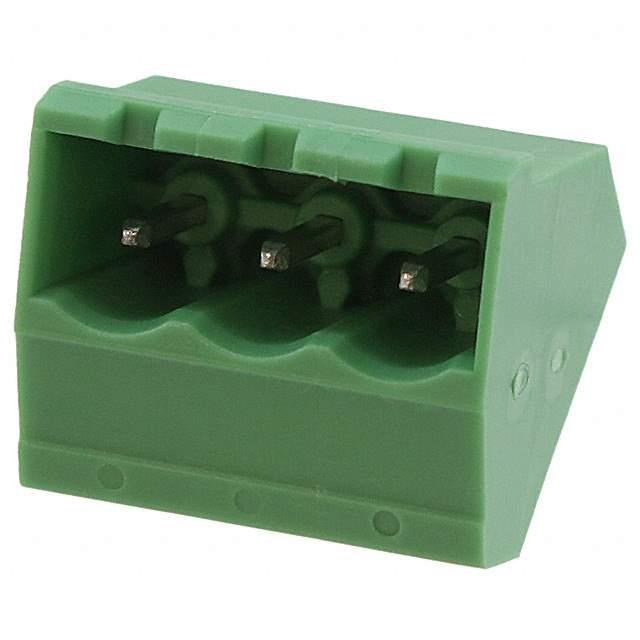

Description	TERM BLOCK HDR 3POS 45DEG 5.08MM / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 45° Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr	Phoenix Contact
Series	COMBICON SMSTBA
Package	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	45°
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	-
Wire Gauge or Range - mm2	-
Color	Green
Temperature Range - Operating	-
Contact Mating Finish	Tin
Features	-
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	-
Contact Material	-
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.583" (14.80mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	100 pcs
Win Source Part Number	1380567-1767384
Ultra Librarian 3D Model	Ultra Librarian 1767384 CAD Model

Alternative Products

Description

The COMBICON SMSTBA series terminal block header is a versatile connector designed for various applications.

Product Series: COMBICON SMSTBA
Type: Header, Male Pins, Shrouded (4 Side)
Positions per Level: 3
Number of Levels: 3
Pitch: 0.200 inches (5.08mm)
Mounting Type: Through-Hole
Current Rating: 12A (IEC) and 15A (UL)
Voltage Rating: 630V (IEC) and 300V (UL)
Color: Green
