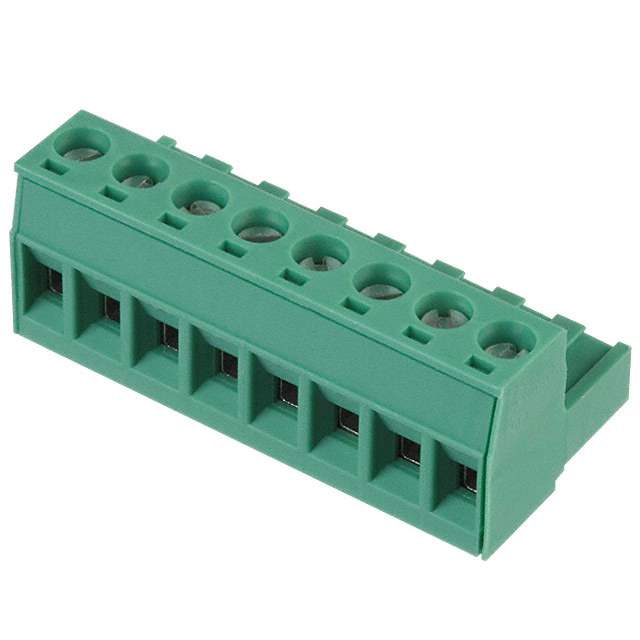

1757077 Real Image
Same model may have multiple batches, images only for reference.

1757077

Part No 1757077
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 8POS STR 5.08MM / 8 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON MSTB
Package Bulk
Product Status Active
Type Plug, Female Sockets
Number of Positions 8
Positions Per Level 8
Number of Levels 1
Pitch 0.200" (5.08mm)
Plug Wire Entry 180°
Termination Style Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line)
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge or Range - mm2 0.2-2.5mm2
Color Green
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Screw Size M3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length 7mm
Housing Material Polyamide (PA), Nylon
Insulation Height 0.591" (15.00mm)
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 905544-1757077
Ultra Librarian 3D Model Ultra Librarian 1757077 CAD Model

Description

The COMBICON MSTB series from Phoenix Contact offers high-quality connectors for various applications. Bold the product name (e.g., BAV99S,135 → COMBICON MSTB series plug) and manufacturer (e.g., Nexperia USA Inc. → Phoenix Contact).

  • Positions: 8
  • Positions per Level: 8
  • Pitch: 0.200" (5.08mm)
  • Plug Wire Entry: 180°
  • Termination Style: Screw - rising cage clamp
  • Current Rating (IEC): 12A
  • Current Rating (UL): 15A
  • Voltage Rating (IEC): 630V
  • Voltage Rating (UL): 300V
  • Wire Gauge Range: 12-30 AWG or 0.2-2.5mm2
  • Housing Material: Polyamide (PA) and nylon
  • Contact Mating Finish: Tin
  • Features: Retention latches (non-wire side)
  • Package: Bulk package of 50 pcs
