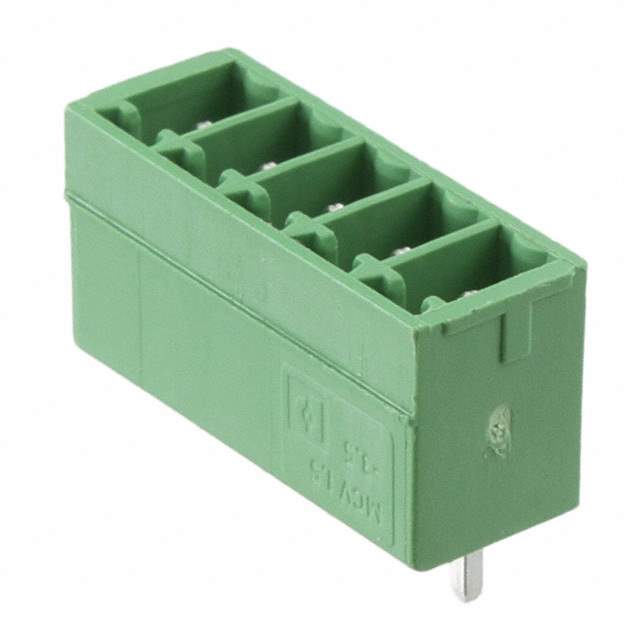

1843635 Real Image
Same model may have multiple batches, images only for reference.

1843635

Part No 1843635
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 5POS VERT 3.5MM / 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON MCV
Package Bulk
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Positions Per Level 5
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 8A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.134" (3.40mm)
Insulation Height 0.362" (9.20mm)
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905629-1843635
Ultra Librarian 3D Model Ultra Librarian 1843635 CAD Model

Description

The COMBICON MCV series offers high-quality terminal blocks for reliable wire-to-board connections. The 905629-1843635 terminal block is a header with male pins, featuring a shrouded design for added protection.

  • Series: COMBICON MCV
  • Type: Header with Male Pins
  • Design: Shrouded
  • Positions per Level: 5
  • Pitch: 0.138" (3.50mm)
  • Current Rating (IEC): 8A
  • Current Rating (UL): 8A
  • Voltage Rating (IEC): 250V
  • Voltage Rating (UL): 300V
  • Termination: Solder
  • Material: Polybutylene Terephthalate (PBT)
  • Color: Green
  • Flammability Rating: UL94 V-0
  • Package: Bulk
  • Package Quantity: 250 pcs
  • Insulation Height: 0.362" (9.20mm)
  • Contact Tail Length: 0.134" (3.40mm)
  • Temperature Range: -40°C to +105°C
