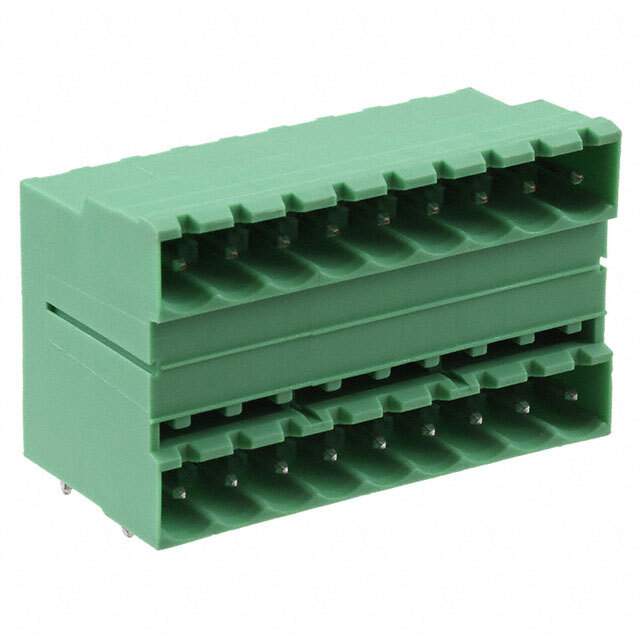

1762444 Real Image
Same model may have multiple batches, images only for reference.

1762444

Part No 1762444
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 18POS 5.08MM / 18 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 18
Positions Per Level 9
Number of Levels 2
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Through Hole
Current - IEC 10A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.138" (3.50mm)
Insulation Height 1.122" (28.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 277-1405-NDR,MDSTB2,5/9-G1-5,08,277-1405,MDSTB 2,5/9-G1-5,08
Standard Package 50
Win Source Part Number 1332314-1762444
Ultra Librarian 3D Model Ultra Librarian 1762444 CAD Model

Description

The 1332314-1762444 from Phoenix Contact is a header type connector with male pins and shrouded (4 side) design.

  • Positions: 18
  • Levels: 2
  • Pitch: 0.200" (5.08mm)
  • Voltage Rating (UL): 300V
  • Voltage Rating (IEC): 630V
  • Current Rating (UL): 15A
  • Current Rating (IEC): 10A
  • Mounting Type: Through Hole
  • Termination Style: Solder
  • Housing Material: Polyamide (PA), Nylon
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -40°C to 125°C
