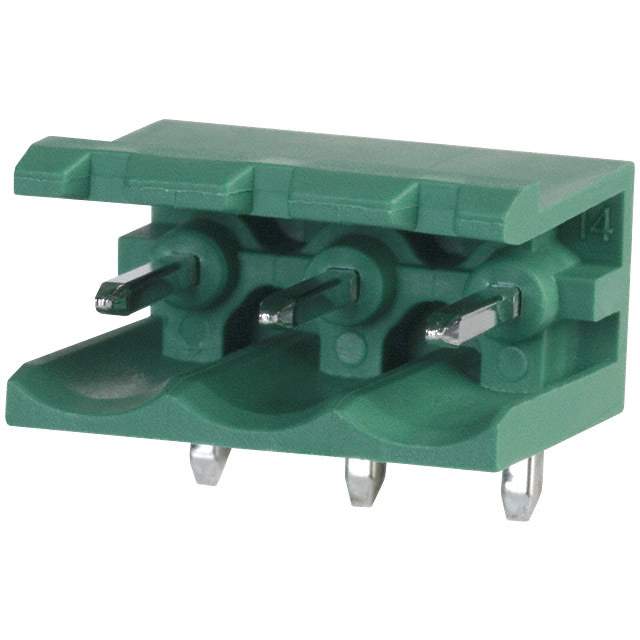

1759020 Real Image
Same model may have multiple batches, images only for reference.

1759020

Part No 1759020
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description 3 Position Terminal Block Header 2 Side Shrouded Right Angle 5.08mm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, EN, UL, VDE
Color Green
Contact Material Copper
Contact Plating Tin
Current 15 A
Current Rating 12 A
Depth 12 mm
Flammability Rating UL94 V-0
Height 12.1 mm
Housing Color Green
Housing Material Polybutylene
Lead Free Lead Free
Length 15.24 mm
Max Current Rating 12 A
Mount Through Hole
Number of Contacts 3
Number of Levels 1
Number of Poles 3
Number of Positions 3
Number of Positions Per Level 3
Number of Rows 1
Orientation Right Angle
Pitch 5.08 mm
RoHS Compliant
Termination Solder
Thickness 10.16 mm
Voltage 300 V
Voltage Rating 250 V
Voltage Rating (DC) 320 V
Weight 151.999994 g
Width 15.24 mm
Win Source Part Number 1192633-1759020
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1759020 CAD Model

Description

The Phoenix Contact 1759020 is a 3-position terminal block used for electronic devices.

  • Positions: 3
  • Color: Green
  • Pitch: 5.08mm
  • Rows: One
  • Levels: Three
  • Termination: Solder
  • Contact Material: Copper
  • Contact Plating: Tin
  • Voltage Rating: 250V
  • Current Rating: 12A
  • Housing Material: Polybutylene
  • Housing Color: Green
  • Thickness: 10.16mm
  • Height: 12.1mm
  • Length: 15.24mm
  • Approvals: CSA, EN, UL, and VDE
  • Alternative Parts: MSTB 2,5/ 3-G-5,08
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Supply and Demand: Limited
