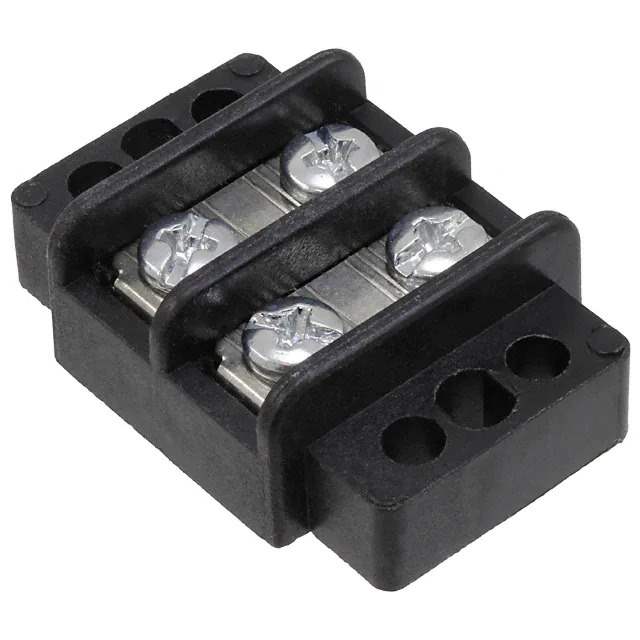

TB200-02SS

Part No TB200-02SS
Manufacturer Eaton Bussmann
Catalog Terminal Blocks
Description BARRIER BLOCK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Barrier Blocks
Mfr Eaton Bussmann
Series Magnum® TB200
Package Bulk
Product Status Active
Terminal Block Type Barrier Block
Number of Circuits 2
Number of Wire Entries 4
Pitch 0.437" (11.10mm)
Number of Rows 2
Current Rating (Amps) 30A
Voltage Rating 300V
Wire Gauge 12-22 AWG
Top Termination Screws with Captive Plate
Bottom Termination Closed
Barrier Type 2 Wall (Dual)
Features Flange
Color Black
Terminal Screw Material Steel, Stainless
Mounting Type Chassis, Panel
Temperature Range - Operating -40°C ~ 130°C
Material - Insulation Thermoplastic
Material Flammability Rating UL94 V-0
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 853096-TB200-02SS
Ultra Librarian 3D Model Ultra Librarian TB200-02SS CAD Model

Description

The 853096-TB200-02SS is a terminal block barrier block manufactured by Eaton Bussmann.

  • Series: Magnum® TB200
  • Design: flange
  • Voltage Rating: 300V
  • Current Rating: 30A
  • Packaging: bulk
  • Standard Package: 50 pieces
  • Wire Gauge: 12-22 AWG
  • Temperature Range: -40°C to 130°C
  • Status: active
