Part No 1524789
Manufacturer Phoenix Contact
Catalog Circular Connectors - Assemblies

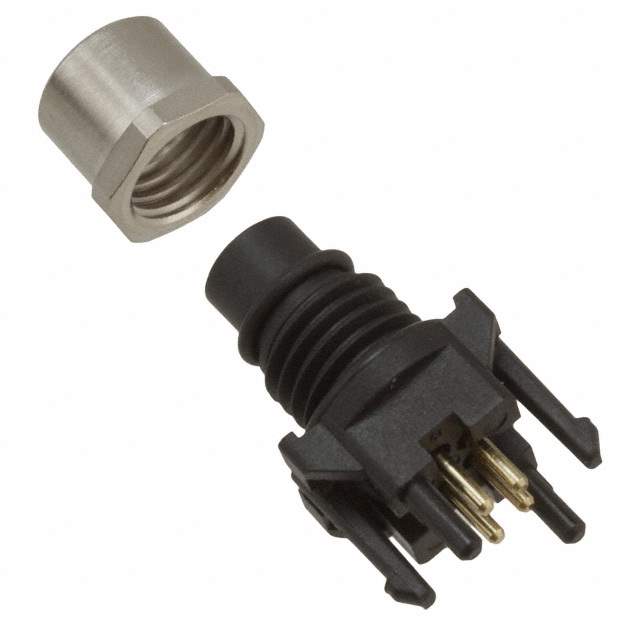

Description CONN RCPT FMALE 4POS GOLD SOLDER / 4 Position Circular Connector Receptacle, Female Sockets Solder
Datasheet
1524789 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Phoenix Contact
Packaging Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 4
Shell Size - Insert M8-4
Mounting Panel Mount, Through Hole
Mounting Feature Bulkhead
Termination Solder
Fastening Type Threaded
Orientation A
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Black, Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 HB
Features Board Guide, Board Lock
Current Rating (Amps) 4A
Voltage Rating 50VAC, 60VDC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Copper Tin
Insert Material Polyamide (PA66), Nylon 6/6
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number SACC-DSIV-M8FS-4CON-L180-06,1524789-ND,SACC-DSIV-M 8FS-4CON-L180-06,277-2768
Standard Package 1
Win Source Part Number 1334465-1524789
Ultra Librarian 3D Model Ultra Librarian 1524789 CAD Model

Description

The Phoenix Contact M8-4 circular connector assembly is a receptacle with female sockets and a threaded fastening type.

  • Termination: Solder
  • Voltage Rating: 50VAC and 60VDC
  • IP Rating: IP67 (dust tight and waterproof)
  • Operating Temperature: -25°C to 85°C
  • Mounting: Panel mount and through-hole
  • Mounting Feature: Bulkhead
  • Contact Material: Copper Tin
  • Contact Finish: Gold
  • Shell Material: Brass with a Nickel finish
  • Insert Material: Polyamide (PA66) and Nylon 6/6
  • Features: Board guide, board lock
