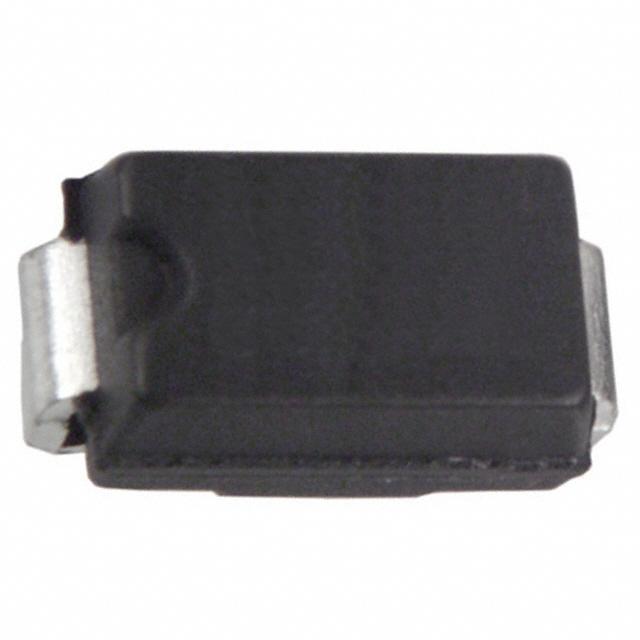

The SMAJ170A/11 is a surface-mount Transient Voltage Suppressor (TVS) diode manufactured by Vishay. This device is designed to protect sensitive electronic equipment from voltage transients induced by lightning, electrostatic discharge (ESD), and other transient voltage events. It comes in a compact SMA package, making it suitable for high-density circuit board applications. The SMAJ170A/11 is a unidirectional TVS diode, meaning it provides overvoltage protection in one direction only.

Applications

• Protection of sensitive electronic equipment from voltage transients
• Surge protection in consumer electronics
• Overvoltage protection in industrial control systems
• ESD protection in data lines
• Protection of microprocessors and memory devices

Features

• Unidirectional TVS diode
• Surface mount SMA package
• Glass passivated junction for reliability
• Excellent clamping capability
• Low incremental surge resistance
• Fast response time
• High temperature soldering guaranteed

Benefits

• Provides reliable protection against transient voltage events, preventing damage to sensitive components.
• Compact SMA package saves board space and simplifies assembly.
• Fast response time ensures quick clamping of transient voltages, minimizing the risk of damage.
• High surge capability allows the diode to withstand high-energy transients without failure.
• Enhances the overall reliability and longevity of electronic products.

Additional Details

The SMAJ170A/11 has a standoff voltage of 170V. Its breakdown voltage ranges from 189V to 209V. The clamping voltage is typically 275.6V at a peak pulse current of 1.5A. The peak pulse power dissipation is 400W at a 10/1000 μs waveform. The operating and storage temperature range is -55°C to +150°C. This device is RoHS compliant.
