Same model may have multiple batches, images only for reference.

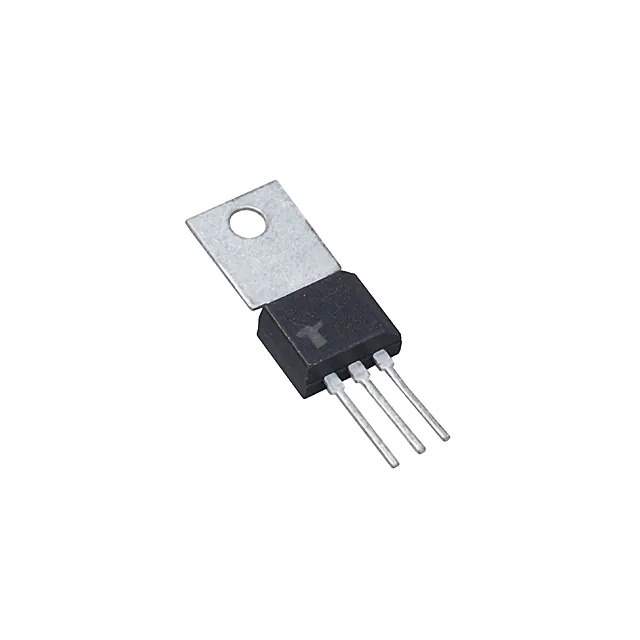

T106M1 Real Image
Same model may have multiple batches, images only for reference.

T106M1

Part No T106M1
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR 600V 4A TO202
Datasheet
T106M1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Littelfuse Inc.
Package Bulk
Product Status Obsolete
Voltage - Off State 600 V
Voltage - Gate Trigger (Vgt) (Max) 800 mV
Current - Gate Trigger (Igt) (Max) 200 µA
Voltage - On State (Vtm) (Max) 2.2 V
Current - On State (It (AV)) (Max) 2.5 A
Current - On State (It (RMS)) (Max) 4 A
Current - Hold (Ih) (Max) 5 mA
Current - Off State (Max) 2 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 16A, 20A
SCR Type Sensitive Gate
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case TO-202 Long Tab
Supplier Device Package TO-202
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 680678-T106M1
Ultra Librarian 3D Model Ultra Librarian T106M1 CAD Model

Description

The T106M1 is a sensitive gate SCR (silicon-controlled rectifier) designed for through-hole mounting.

  • Mounting: Through-Hole
  • Maximum Off-State Voltage: 600V
  • Gate Trigger Voltage: 800mV
  • Maximum Gate Trigger Current: 200µA
  • On-State Voltage: 2.2V
  • Average On-State Current: 2.5A
  • Maximum RMS On-State Current: 4A
  • Maximum Off-State Current: 2µA
  • Package: TO-202 long tab
  • Operating Temperature: -40°C to 110°C
  • Status: Obsolete
