The Panjit International Inc. PJA3415AE-AU_R1_000A1 is a P-channel MOSFET transistor with a maximum drain-source voltage of 20V and a current-continuous drain of 4.3A (Ta).

• Rds On (Max) @ Id, Vgs: 52mOhm @ 4.3A, 4.5V
• Vgs(th) (Max) @ Id: 1V @ 250µA
• Power Dissipation (Max): 1.25W (Ta)
• Gate Charge (Qg) (Max) @ Vgs: 24 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 907 pF @ 10 V
• Vgs (Max): ±8V
• Operating Temperature Range: -55°C ~ 150°C (TJ)

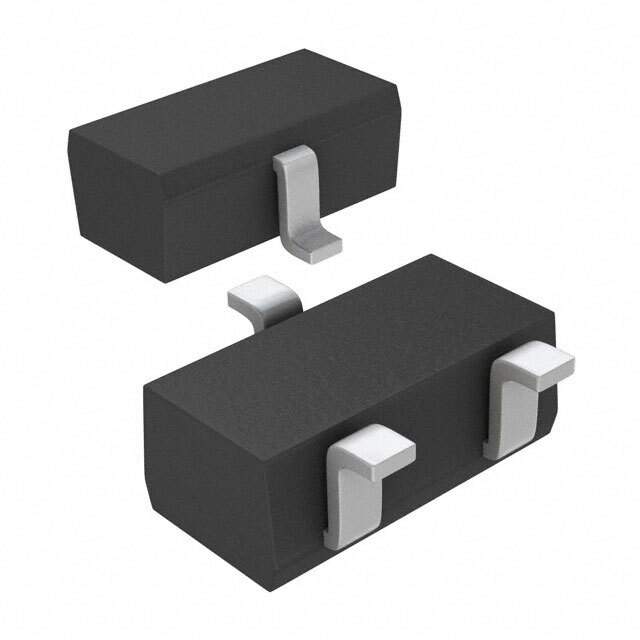

• Package: TO-236-3, SC-59, SOT-23-3
• Alternative Parts: Not provided
