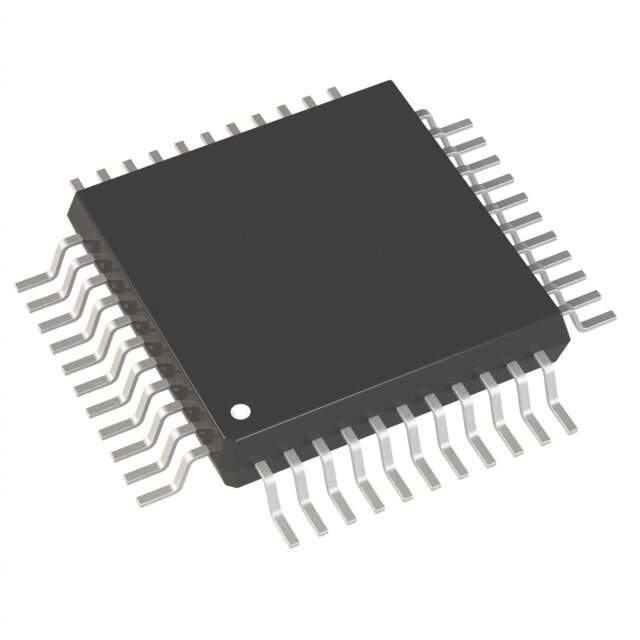

Product Overview: AD7864ASZ-3REEL

The AD7864ASZ-3REEL is a high-performance, 12-bit analog-to-digital converter (ADC) from Analog Devices Inc., renowned for its precision electronic components. This ADC is specifically designed to cater to applications requiring a high level of accuracy and speed, making it an ideal choice for data acquisition systems, medical instruments, and industrial control processes.

Key Features:

• Resolution: The device offers a 12-bit resolution, providing fine detail in the analog signal conversion process.
• Multi-Channel: It features four single-ended analog input channels, allowing for multiple signal inputs to be converted simultaneously.
• Sampling Rate: With a maximum sampling rate of 133 kSPS (kilo samples per second), the AD7864ASZ-3REEL is capable of handling high-speed signal processing tasks.
• Low Power Consumption: Designed for efficiency, it operates on a low power supply voltage from 2.7 V to 5.25 V, making it suitable for battery-powered devices or energy-sensitive applications.
• Interface: The device includes a parallel interface for easy integration with microcontrollers and digital signal processors.
• Package: It is available in a 28-lead SSOP (Shrink Small Outline Package) that is compact and suitable for space-constrained applications.
• Temperature Range: The ADC operates over an industrial temperature range, ensuring reliability and performance under varying environmental conditions.

Applications:

The versatility of the AD7864ASZ-3REEL makes it a go-to ADC for a wide range of applications. It is particularly well-suited for:

• Data Acquisition Systems
• Medical Imaging Devices
• Industrial Automation and Process Control
• Instrumentation
• Battery-Powered Instruments

With its high-speed, multi-channel input, and low power consumption, the AD7864ASZ-3REEL from Analog Devices Inc. offers a reliable solution for designers looking to optimize the performance and efficiency of their electronic systems. Whether in the medical field, industrial settings, or consumer electronics, this ADC stands out for its precision and durability.
