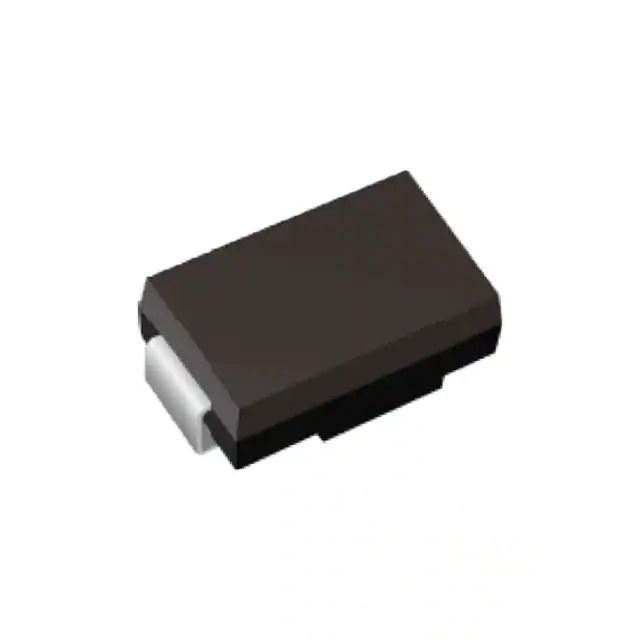

Same model may have multiple batches, images only for reference.
BR210-AU_R1_000A1 Panjit
Same model may have multiple batches, images only for reference.

BR210-AU_R1_000A1

Part No BR210-AU_R1_000A1
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 2A SMA
Datasheet
BR210-AU_R1_000A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panjit International Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 800 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 100 V
Capacitance @ Vr, F 75pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number BR210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367226-BR210-AU_R1_000A1
Ultra Librarian 3D Model Ultra Librarian BR210-AU_R1_000A1 CAD Model

Description

The 1367226-BR210-AU_R1_000A1 is a single rectifier diode from Panjit International Inc.

  • Maximum Reverse Voltage: 100V
  • Average Rectified Current: 2A
  • Forward Voltage Drop: 800 mV @ 2A
  • Recovery Time: less than 500ns
  • Reverse Leakage Current: 50 µA @ 100V
  • Capacitance: 75pF @ 4V and 1MHz
  • Mounting Type: Surface Mount
  • Package: DO-214AC, SMA
  • Operating Temperature: -55°C to 175°C
