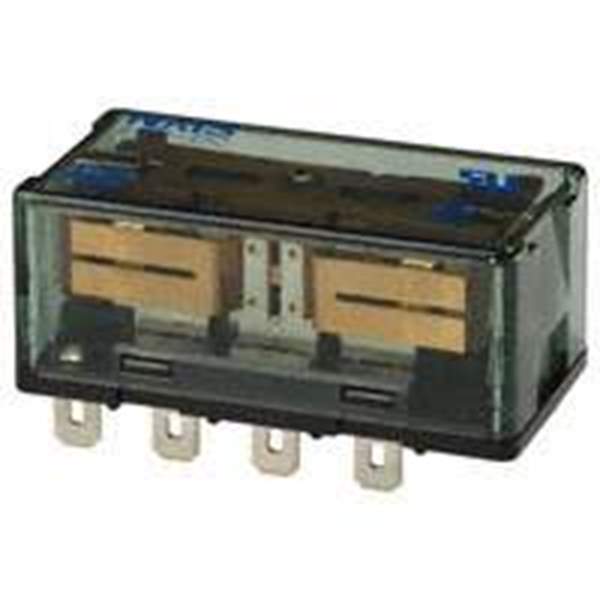

SP2-DC12V Real Image
Same model may have multiple batches, images only for reference.

SP2-DC12V

Part No SP2-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 15A 12V  /  General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series SP
Package Tube
Mounting Type Socketable
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 15 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 25 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 30 ms
Release Time 20 ms
Temperature Range - Operating -50°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 480 Ohms
Base Product Number SP2-D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-1749,SP2DC12V
Standard Package 20
Win Source Part Number 1083529-SP2-DC12V
Ultra Librarian 3D Model Ultra Librarian SP2-DC12V CAD Model

Description

The Panasonic 1083529-SP2-DC12V is a general-purpose relay that is non-latching in nature.

  • Configuration: Double Pole Double Throw (DPDT)
  • Contact Rating: 15A
  • Coil Voltage: 12VDC
  • Coil Resistance: 480 Ohms
  • Operating Temperature: -50°C to 60°C
  • Switching Voltage: 250VAC and 30VDC
  • Popularity: Medium
  • Counterfeit Risk: 50% chance in the open market
  • Manufacturer: Panasonic Electric Works
