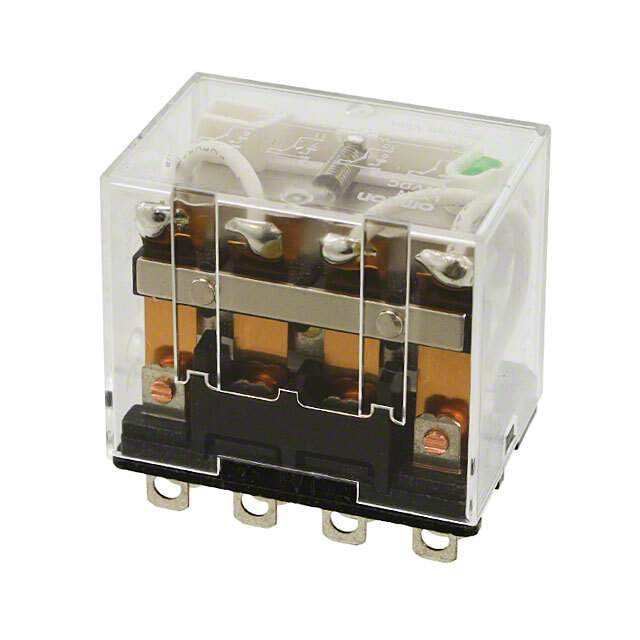

LY4N-DC12 Real Image
Same model may have multiple batches, images only for reference.

LY4N-DC12

Part No LY4N-DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 10A 12V  /  General Purpose Relay 4PDT (4 Form C) 12VDC Coil Socketable
Datasheet
LY4N-DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Automation and Safety
Series LY
Package Bulk
Mounting Type Socketable
Coil Voltage 12VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 120 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 9.6 VDC
Must Release Voltage 1.2 VDC
Operate Time 25 ms
Release Time 25 ms
Temperature Range - Operating -25°C ~ 40°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 100 Ohms
Base Product Number LY4
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names LY4N-DC12-ND,LY4NDC12,Z6262
Standard Package 1
Win Source Part Number 1073288-LY4N-DC12
Ultra Librarian 3D Model Ultra Librarian LY4N-DC12 CAD Model

Description

The LY4N-DC12 is a 4PDT (4 Form C) general purpose non-latching relay from Omron Automation and Safety.

  • Coil Voltage: 12VDC
  • Coil Resistance: 100 Ohms
  • Contact Rating (Current): 10A
  • Switching Voltage: 250VAC, 125VDC - Max
  • Operating Temperature: -25°C to 40°C
  • Must Operate Voltage: 9.6VDC
  • Must Release Voltage: 1.2VDC
  • Lighted Indicator: Yes
  • Mounting: Socketable
  • Package: Bulk
  • Standard Package: 1
  • Seal Rating: -
  • Release Time: 25ms
