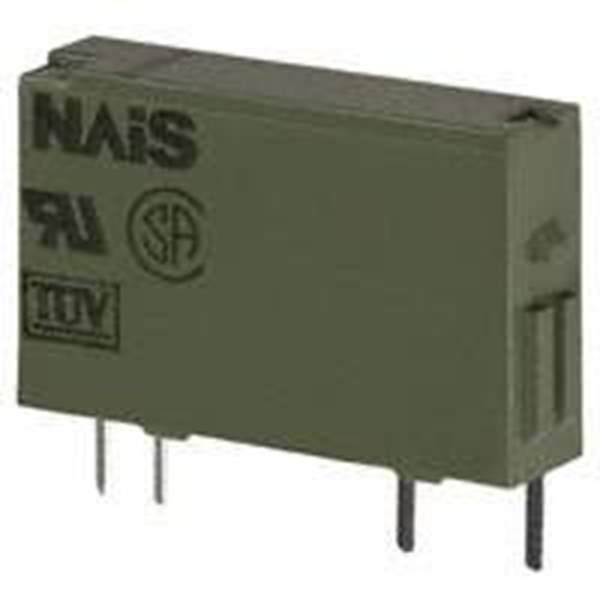

PA1A-24V Real Image PA1A-24V real image4437 PA1A-24V Real Image1 PA1A-24V Real Image2
Same model may have multiple batches, images only for reference.
PA1A-24V Real Image PA1A-24V real image4437 PA1A-24V Real Image1 PA1A-24V Real Image2
PA1A-24V Real Image PA1A-24V real image4437 PA1A-24V Real Image1 PA1A-24V Real Image2
Same model may have multiple batches, images only for reference.

PA1A-24V

Part No PA1A-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 24V
Datasheet
PA1A-24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 7.5mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 110VDC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 180 mW
Coil Resistance 3.2 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 045544-PA1A-24V
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PA1A-24V CAD Model

Description

The Panasonic Electric Works PA1A-24V is a general-purpose relay that is designed to provide reliable performance in a variety of applications.

  • Manufacturer: Panasonic Electric Works
  • Contact Rating: 5A
  • Switching Voltage: 250VAC
