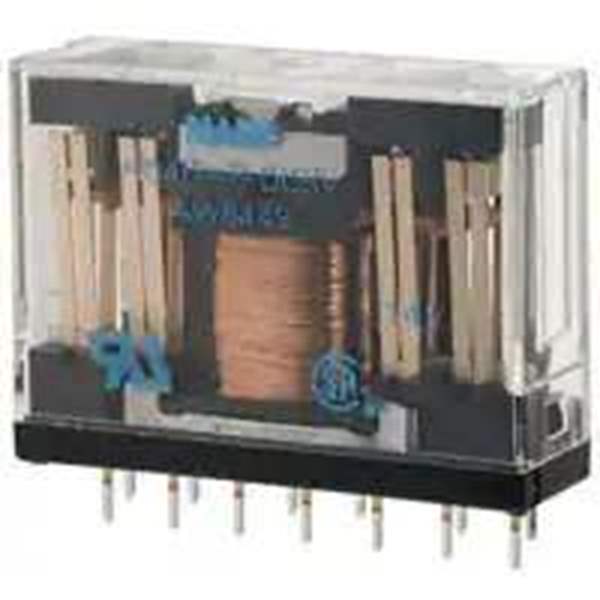

NC4D-P-DC5V Real Image
Same model may have multiple batches, images only for reference.

NC4D-P-DC5V

Part No NC4D-P-DC5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 5V
Datasheet
NC4D-P-DC5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series NC
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC - Max
Coil Current 144 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 4 VDC
Must Release Voltage 0.5 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 34.7 Ohms
Base Product Number NC4D
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 646873-NC4D-P-DC5V
Ultra Librarian 3D Model Ultra Librarian NC4D-P-DC5V CAD Model

Description

The NC4D-P-DC5V is a 4PDT (4 Form C) general-purpose power relay from Panasonic. It has a coil voltage of 5VDC and a coil current of 144 mA.

  • Coil Voltage: 5VDC
  • Coil Current: 144 mA
  • Relay Type: Non-Latching
  • Series: NC
  • Termination Style: PC Pin
  • Contact Rating: 5A
  • Switching Voltage: 250VAC
  • Standard Package: 20 pcs
  • Operating Temperature: -40°C to 55°C
  • Manufacturer: Panasonic
