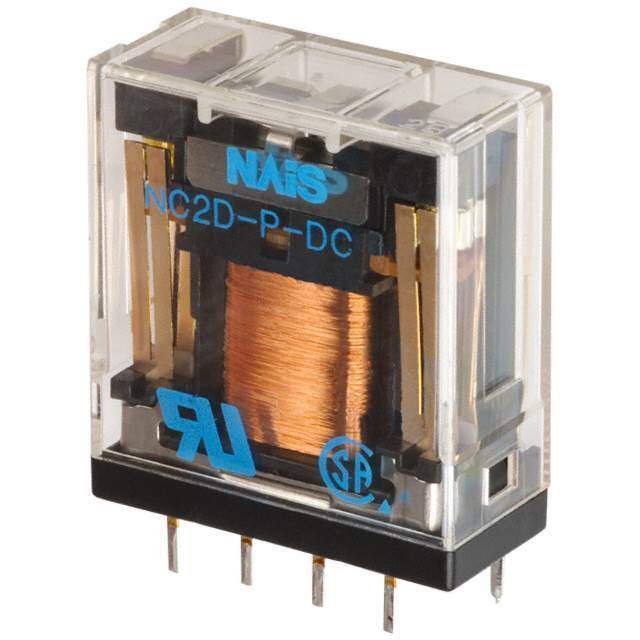

NC2D-P-DC12V Real Image
Same model may have multiple batches, images only for reference.

NC2D-P-DC12V

Part No NC2D-P-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 12V
Datasheet
NC2D-P-DC12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 9.6 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 20ms
Release Time 10ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 400 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 209048-NC2D-P-DC12V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NC2D-P-DC12V CAD Model

Description

The Panasonic Electric Works relay is a DPDT (2 Form C) general-purpose non-latching relay. It has a coil voltage of 12VDC, coil resistance of 400 Ohms, and coil current of 30mA.

  • Contact Rating: 5A
  • Switching Voltage: 250VAC
  • Operate Time: 20ms
  • Release Time: 10ms
  • Turn-on Voltage: 9.6VDC
  • Turn-off Voltage: 1.2VDC
  • Description: The relay is mounted through hole and has a packaging of tube/rail.
  • Temperature Range: -40°C to 70°C
  • Description: The supply and demand status is limited.
