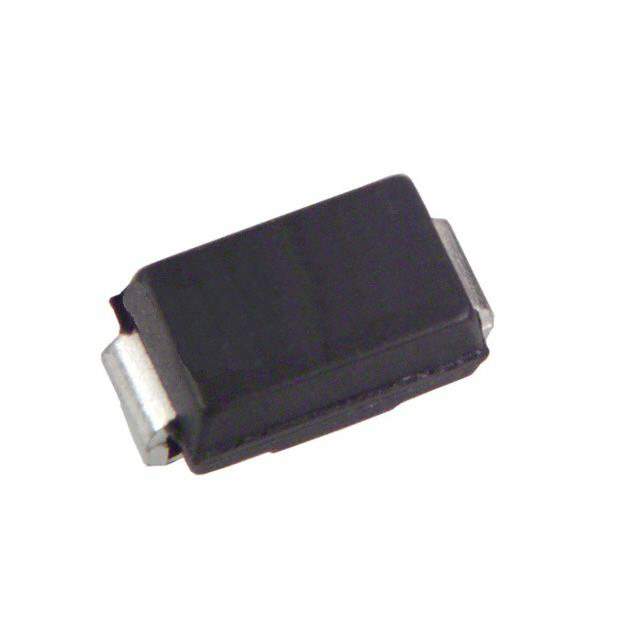

MA736-(TX) Real Image
Same model may have multiple batches, images only for reference.

MA736-(TX)

Part No MA736-(TX)
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A NMINIP2
Datasheet
MA736-(TX) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 550mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 2mA @ 40V
Capacitance @ Vr, F 50pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package NMiniP2-J1
Operating Temperature - Junction -40°C to 125°C
Win Source Part Number 207241-MA736-(TX)
Ultra Librarian 3D Model Ultra Librarian MA736-(TX) CAD Model

Description

The Panasonic Electronic Components Schottky diode is an SMD (SMT) mounted component.

  • Maximum DC Reverse Voltage: 40V
  • Average Rectified Current: 1A
  • Forward Voltage: 550mV @ 1A
  • Reverse Recovery Time: 30ns
  • Capacitance: 50pF @ 10V and 1MHz
  • Operating Temperature Range: -40°C to 125°C
  • Series: Fast recovery
  • Case / Package: NMiniP2-J1
  • Category: Discrete Semiconductor Products
  • Status: Obsolete (EOL)
