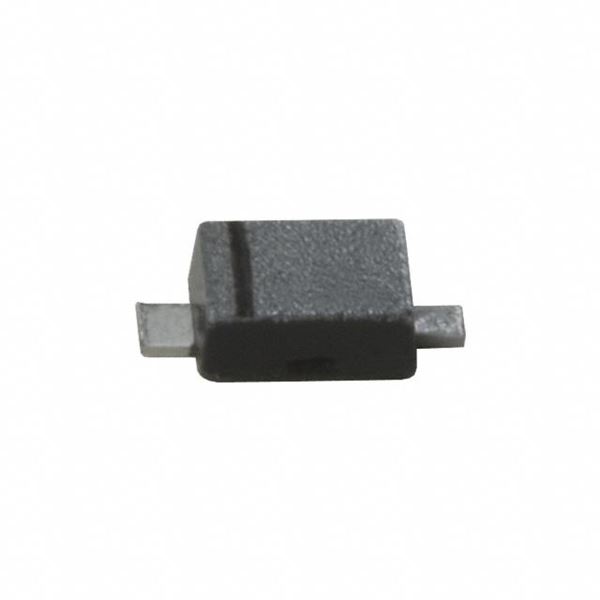

MA2J11600L Panasonic
Same model may have multiple batches, images only for reference.

MA2J11600L

Part No MA2J11600L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 40V 100MA SMINI2
Datasheet
MA2J11600L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 1.2V @ 100mA
Reverse Recovery Time (trr) 100ns
Current - Reverse Leakage @ Vr 10nA @ 40V
Capacitance @ Vr, F 2pF @ 6V, 1MHz
Mounting SMD (SMT)
Case / Package SMini2-F1
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 096362-MA2J11600L
Ultra Librarian 3D Model Ultra Librarian MA2J11600L CAD Model

Description

The Panasonic Electronic Components MA2J11600L is a surface mount diode with the following specifications:

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 100mA
  • Forward Voltage: 1.2V @ 100mA
  • Reverse Recovery Time: 100ns
  • Capacitance: 2pF @ 6V and 1MHz
  • Maximum Operating Temperature: 150°C
  • Status: Obsolete (EOL)
  • Package: SMini2-F1
  • Application: Suitable for use in discrete semiconductor products.
