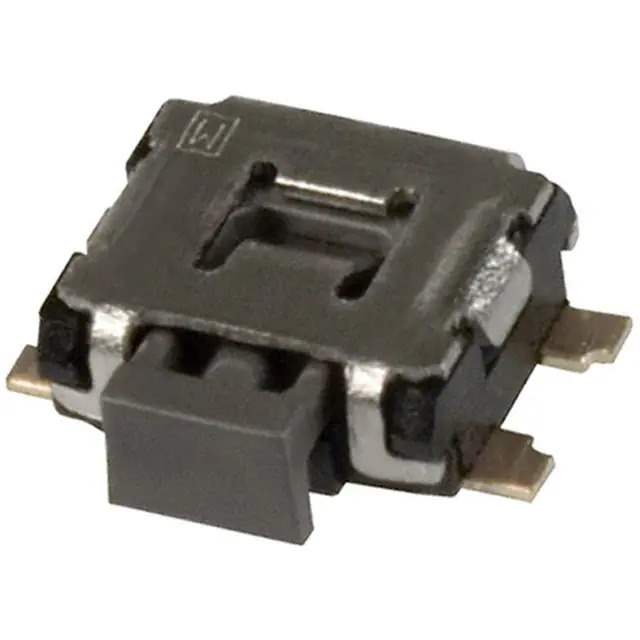

Same model may have multiple batches, images only for reference.

EVQ-P7J01P

Name: EVQ-P7J01P
Brand: Panasonic
SKU: 871299
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EVQ-P7J01P
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	Panasonic
Series	EVQP7
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Rectangular Button
Mounting Type	Surface Mount, Right Angle
Actuator Orientation	Side Actuated
Termination Style	Gull Wing
Outline	4.70mm x 2.90mm
Illumination	Non-Illuminated
Operating Force	160gf
Temperature Range - Operating	-20°C ~ 70°C
Switch Travel	0.20mm
Mechanical Life	100,000 Cycles
Base Product Number	EVQ-P7
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	871299-EVQ-P7J01P
Ultra Librarian 3D Model	Ultra Librarian EVQ-P7J01P CAD Model

Description

The Panasonic 871299-EVQ-P7J01P is a tactile switch in the EVQP7 series.

Termination Style: Gull Wing
Package: Tape & Reel
Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Type: Rectangular Button
Switch Travel: 0.20mm
Contact Rating: 0.05A @ 12VDC
Operating Force: 160gf
Mechanical Life: 100,000 cycles
Mounting Type: Surface Mount, Right Angle
Temperature Range: -20°C to 70°C
MSL Level: 1 (unlimited)
HTSUS Code: 8536.50.9031
Base Product Number: EVQ-P7
Status: Active
