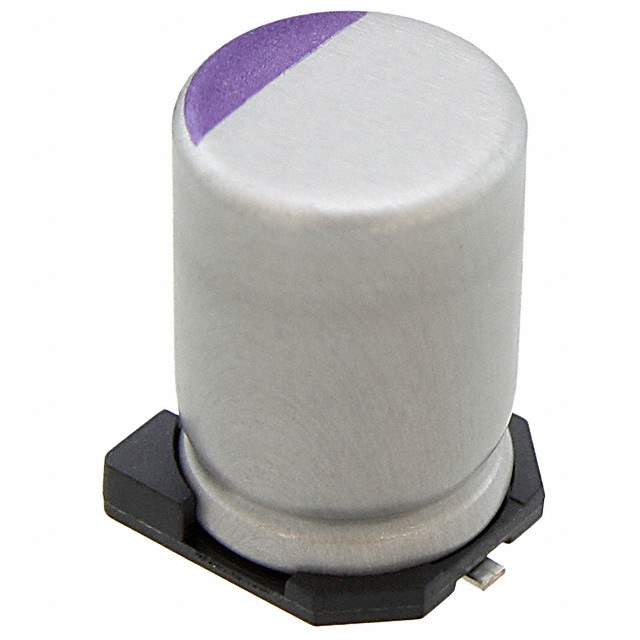

Same model may have multiple batches, images only for reference.

25SVPF180M

Name: 25SVPF180M
Brand: Panasonic
SKU: 417875
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	25SVPF180M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 180UF 20% 25V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Status	Active
Type	Polymer
Capacitance	180μF
Tolerance	±20%
Voltage Rating	25V
ESR	16 mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C to 105°C
Ripple Current - Low Frequency	232.5mA @ 120Hz
Ripple Current - High Frequency	4.65A @ 100kHz
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Dimension	Radial, Can - SMD
Win Source Part Number	1003563-25SVPF180M
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	400
Ultra Librarian 3D Model	Ultra Librarian 25SVPF180M CAD Model

Description

The Panasonic Electronic Components 1003563-25SVPF180M is a polymer capacitor with a capacitance of 180μF and a voltage rating of 25V.

Manufacturer: Panasonic Electronic Components
Product: 1003563-25SVPF180M
Type: Polymer Capacitor
Capacitance: 180μF
Voltage Rating: 25V
Tolerance: ±20%
ESR: 16 mOhm
Ripple Current: 232.5mA @ low frequency and 4.65A @ high frequency
Lifetime: 5000 hours @ 105°C
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting: SMD (SMT)
Package: Reel
Quantity per Package: 400
