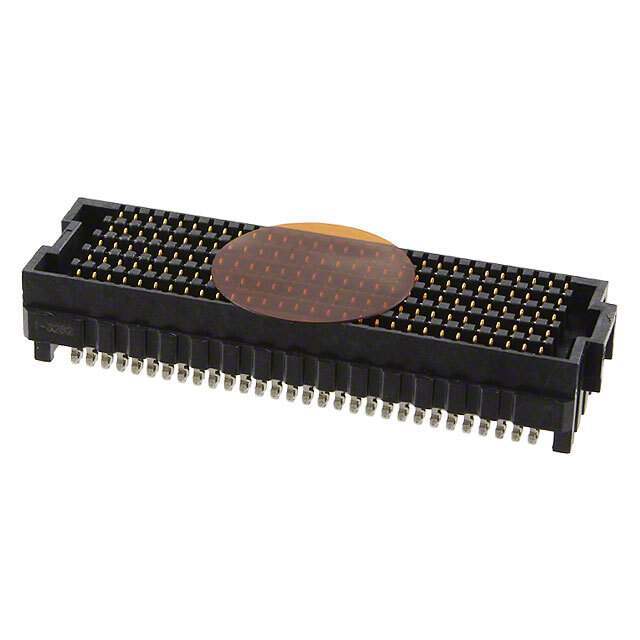

Same model may have multiple batches, images only for reference.
0459713515 Molex
Same model may have multiple batches, images only for reference.

0459713515

Part No 0459713515
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HD ARRAY RCPT 300P SMD GOLD
Datasheet
0459713515 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Part Status Active
Connector Type High Density Array, Female
Number of Positions 300
Pitch 0.050" (1.27mm)
Number of Rows 10
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 10mm, 10.5mm, 11mm, 11.5mm, 12.5mm, 13mm, 15mm
Ultra Librarian 3D Model Ultra Librarian 0459713515 CAD Model

Description

1.27mm Pitch, SEARAY Receptacle, 300 Circuits, 8.00mm Unmated Height, 10 Rows, with Pegs, Solder Charge Lead-Free
