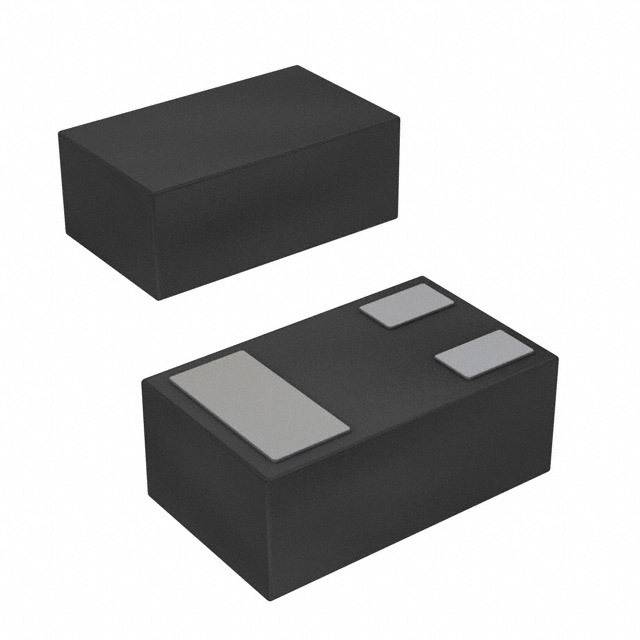

Same model may have multiple batches, images only for reference.
MA26V1100A Panasonic
Same model may have multiple batches, images only for reference.

MA26V1100A

Part No MA26V1100A
Manufacturer Panasonic
Catalog Variable Capacitance Diodes (Varicaps, Varactors)
Description DIODE VARIABLE CAP 8V 1006
Datasheet
MA26V1100A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance @ Vr, F 1.34pF @ 4V, 1MHz
Capacitance Ratio 2.34
Capacitance Ratio Condition C1/C4
Voltage - Peak Reverse (Max) 8V
Diode Type Single
Temperature Range - Operating 125°C (TJ)
Mounting SMD (SMT)
Case / Package ML3-N2
Win Source Part Number 021052-MA26V1100A
Ultra Librarian 3D Model Ultra Librarian MA26V1100A CAD Model

Description

The Panasonic Electronic Components Diode is a high-quality electronic component that is ideal for discrete semiconductor products. It is a single diode type with a capacitance of 1.34pF at 4V, 1MHz and a voltage rating of 8V peak reverse (max). The capacitance ratio is 2.34 with a capacitance ratio condition of C1/C4. The diode is mounted using SMD (SMT) technology and has been designed to operate within a temperature range of 125°C (TJ). It measures ML3-N2 in case/package. This product is now obsolete (EOL) and has a medium popularity.
